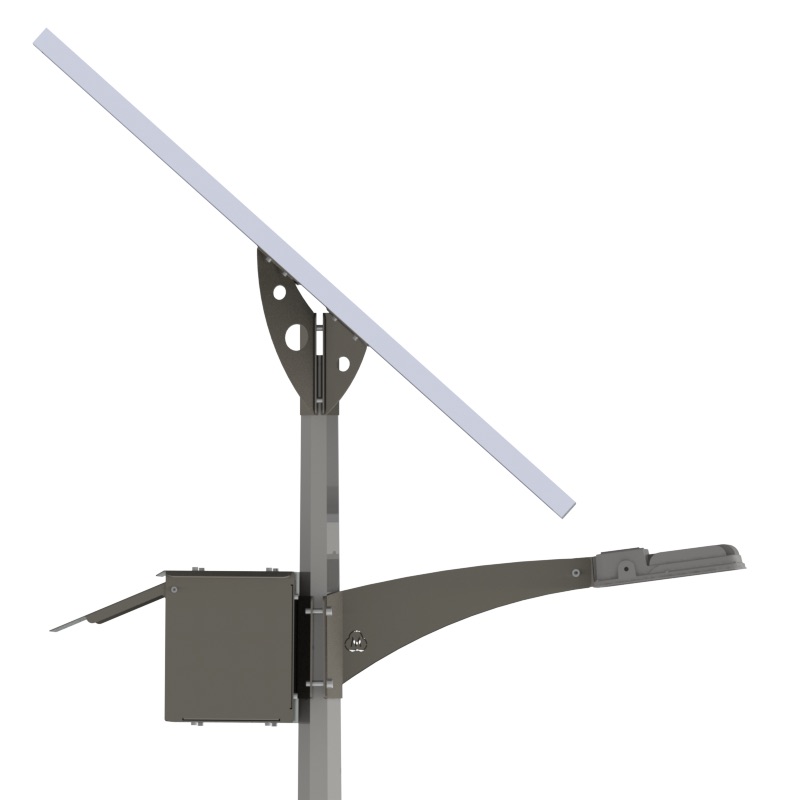

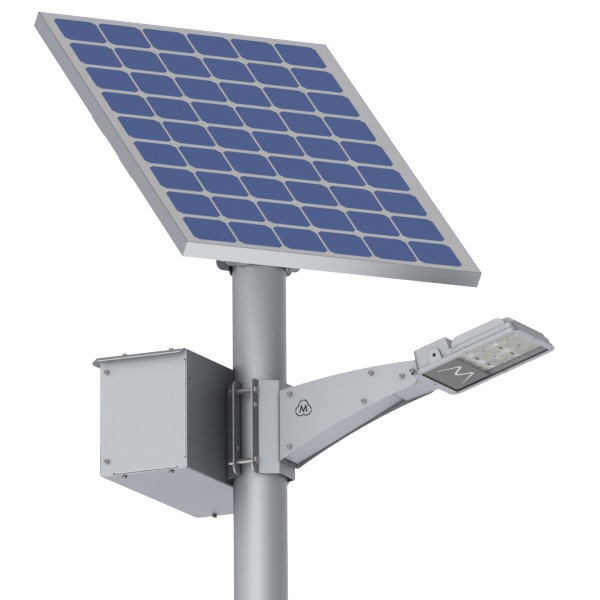

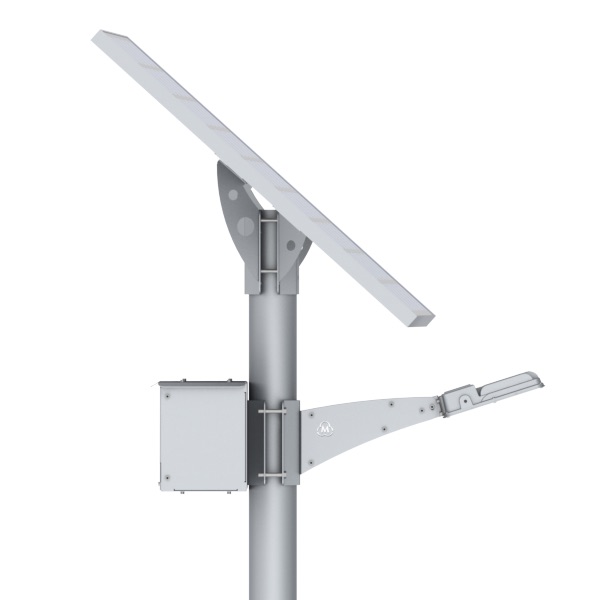

LPM Series Solar Energy Lighting Fixure ;
Our products manufactured using high efficiency LED technology work with 130 LM/W efficiency. Long-lasting deep cycle gel batteries are used. With advanced technologies, the sun’s rays are transformed into the most efficient light at night. Can be produced in 18 to 36 W power ranges.
|
LPMS Series Solar Lighting Product
|
| Product Codu |
LPMS-GE
72S-18-[AS-80-40]
|
LPMS-GE
72S-24-[AS-100-65]
|
LPMS-GE
72S-30-[AS-120-65]
|
LPMS-GE
72S-36-[AS-150-100]
|
| Optical Specifications |
| Luminous Flux |
2.340 lm |
3.120 lm |
3.750 lm |
4.320 lm |
| Power |
18 W |
24 W |
30 W |
36 W |
| CCT |
3000 K , 4000 K , 5000 K, 6500 K |
| CRI |
Ra>70 |
| Optics |
Asymmetric |
| Elektrical Specifications |
| Solar Panel |
80 W |
100 W |
120 W |
150 W |
| Battery |
40 Ah /480 Wh |
65 Ah / 780 Wh |
65 Ah / 780 Wh |
100 Ah / 1200 Wh |
| Autonomy |
3 Gün @ 8 Saat/Gün |
3 Day @ 10 Hour/Day |
3 Day @ 8 Hour/Day |
3 Day @ 11 Hour/Day |
| Solar Charge Control |
PWM |
| Battery Type |
Deep Cycle GEL Battery |
| Environmental |
| IP Protection |
IP66 |
| LED Life Span |
50,000 hours IESNA LM-80 TM-21 certified |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium Injektion |
| Protection Class |
Class II |
| Dimensions |
| Pole Length |
4 Mt |
4-5 Mt |
4-5 Mt |
5-6 Mt |
| Pole Details |
114/76 mm |
114/76 mm |
114/76 mm |
114/76 mm |
| Other Details |
| Warranty |
2 Years |
| Dim Specially |
Programmable |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
