76 – 89 mm diameter input console is suitable for installation from below. Easy intervention to the drive bay. Led with over 50,000 hours of operating life in accordance with the LM80 and TM21 standards.
High efficiency LED technology. Transparent tempered glass with high permeability, protected against heat and impacts. Electrostatic powder coated , aluminum injection body.

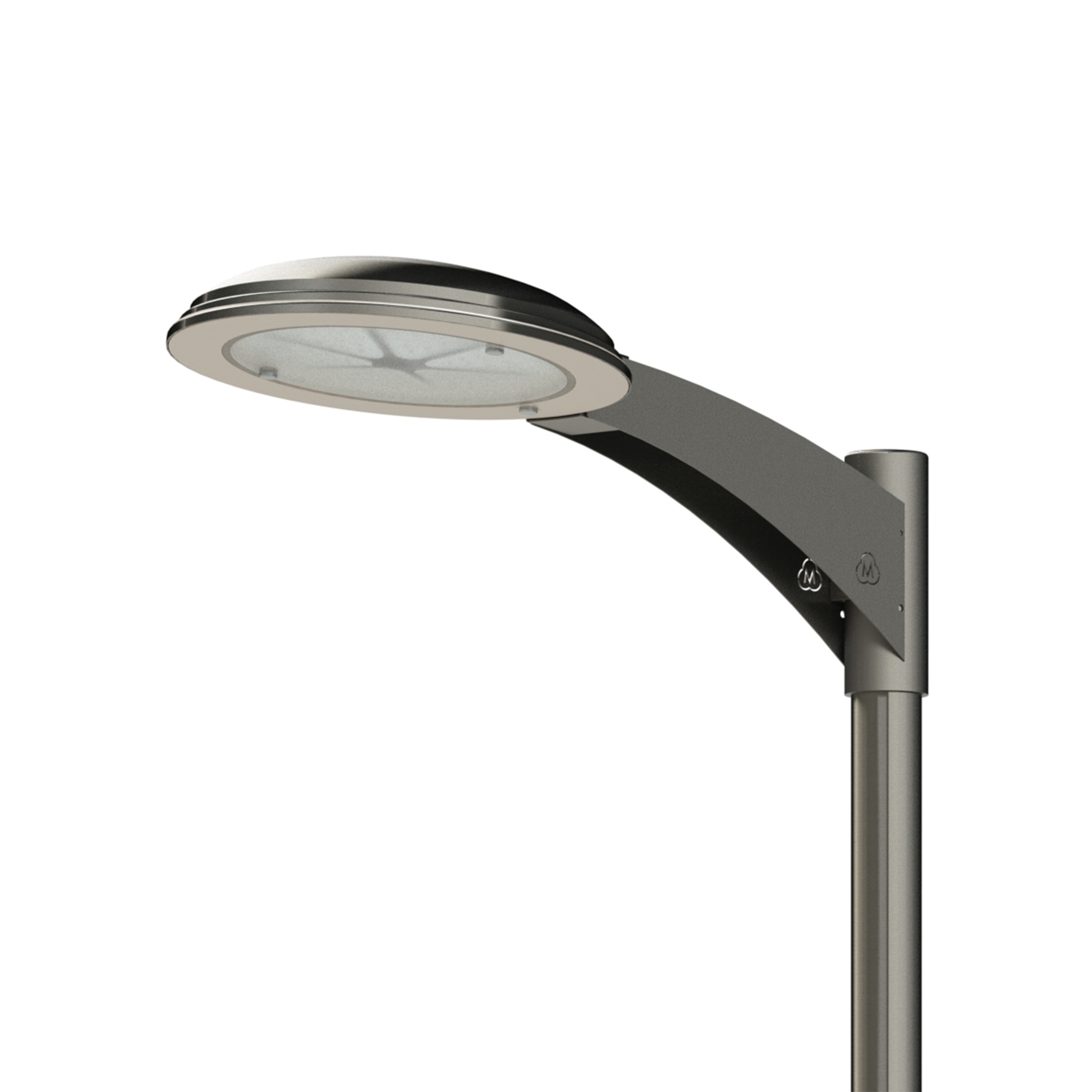

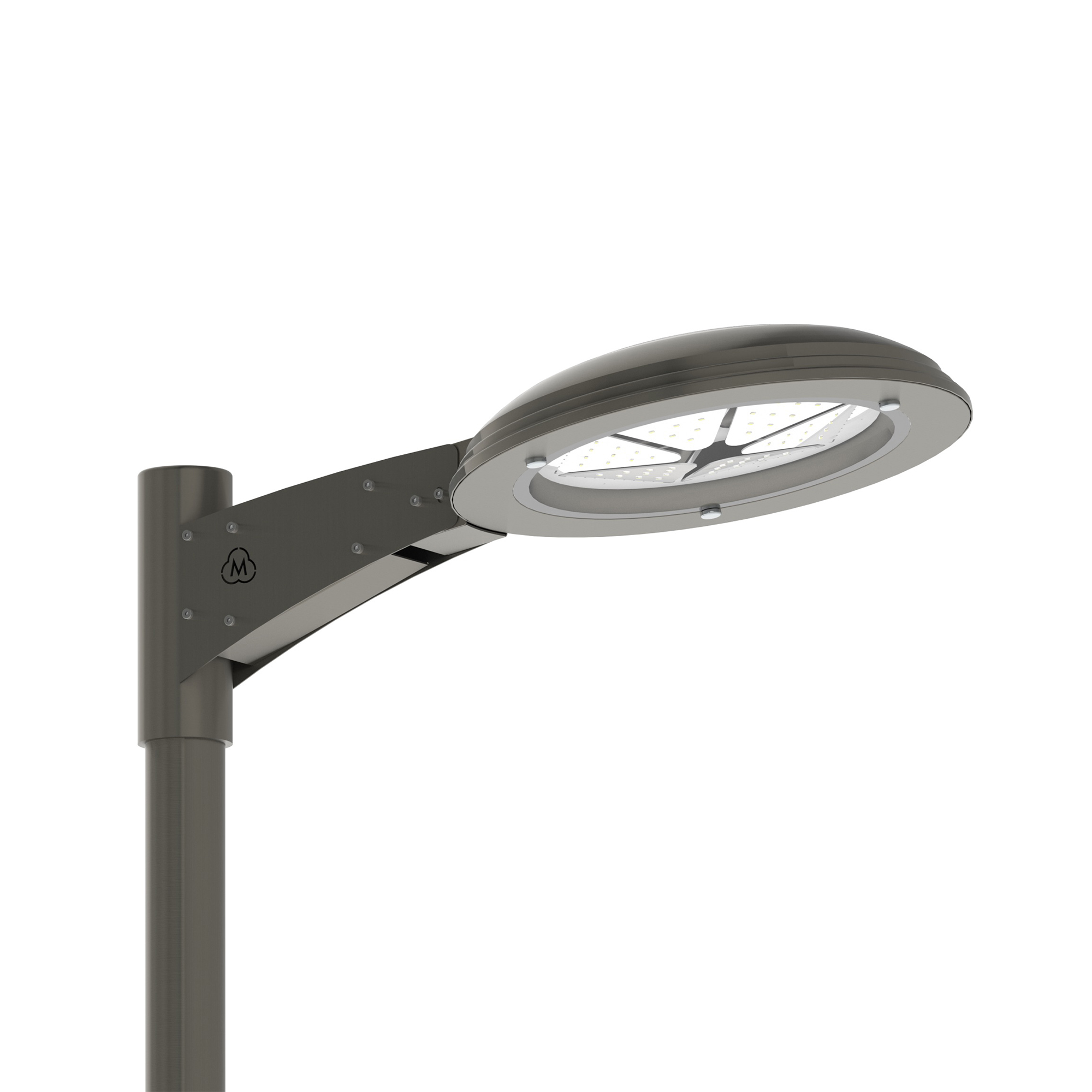

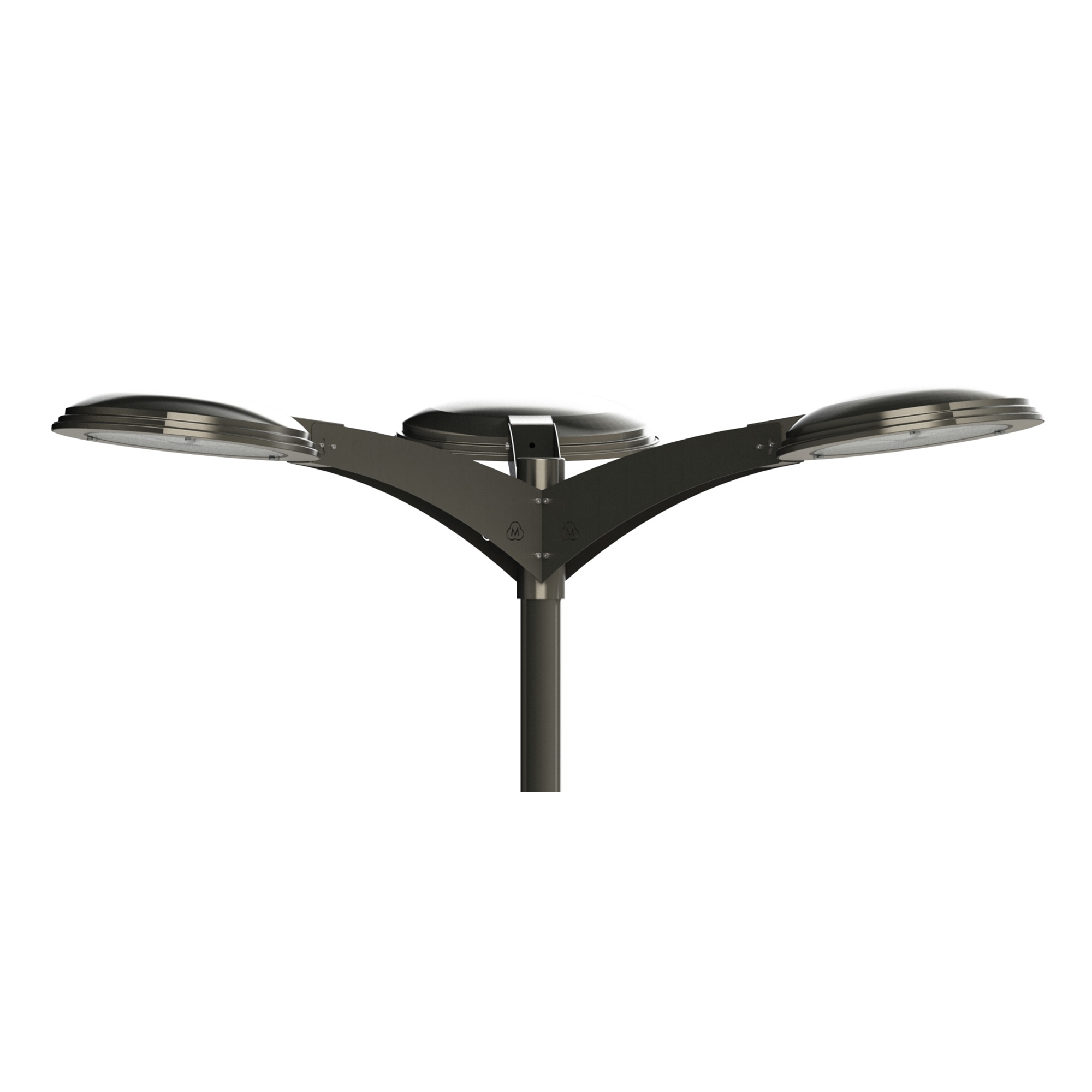

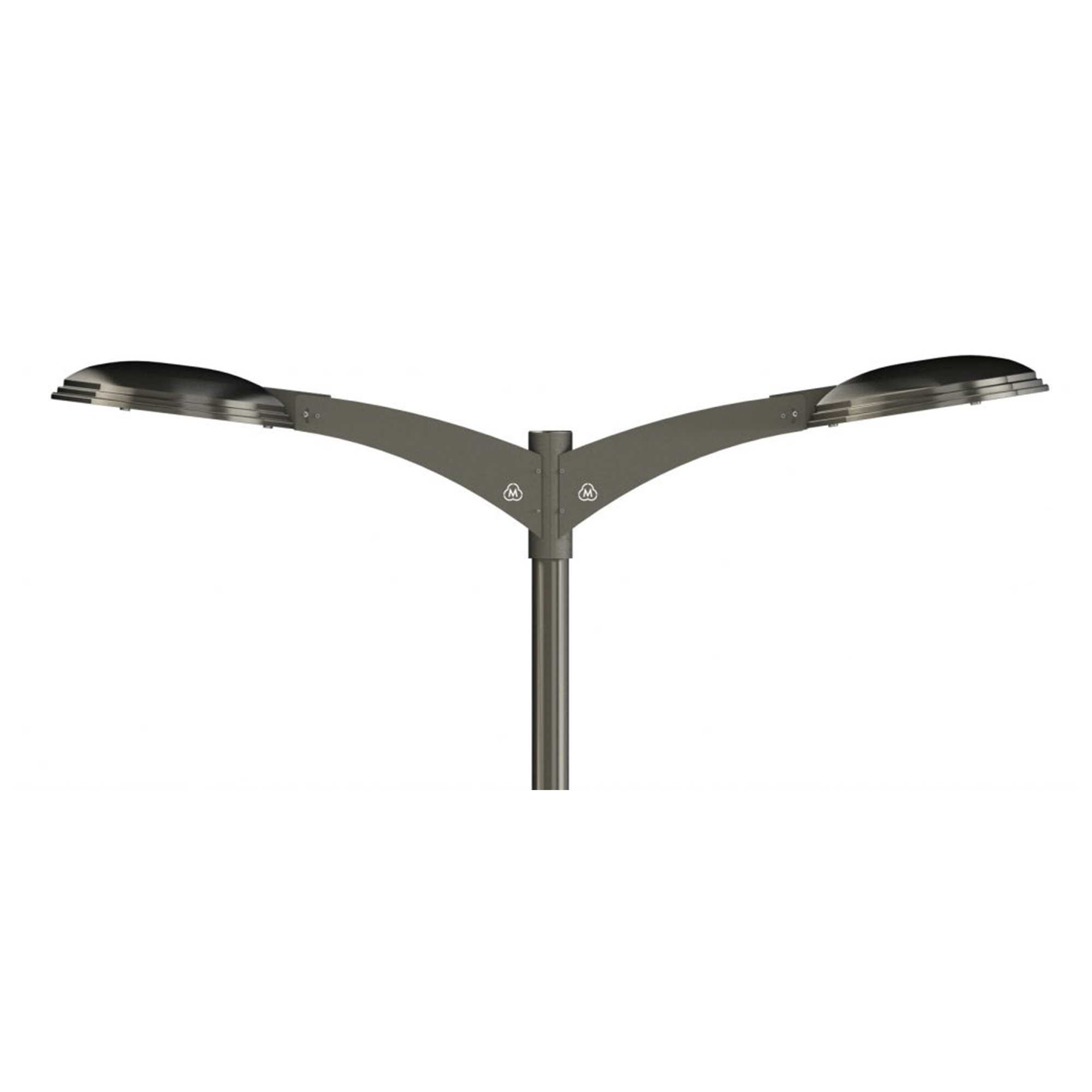

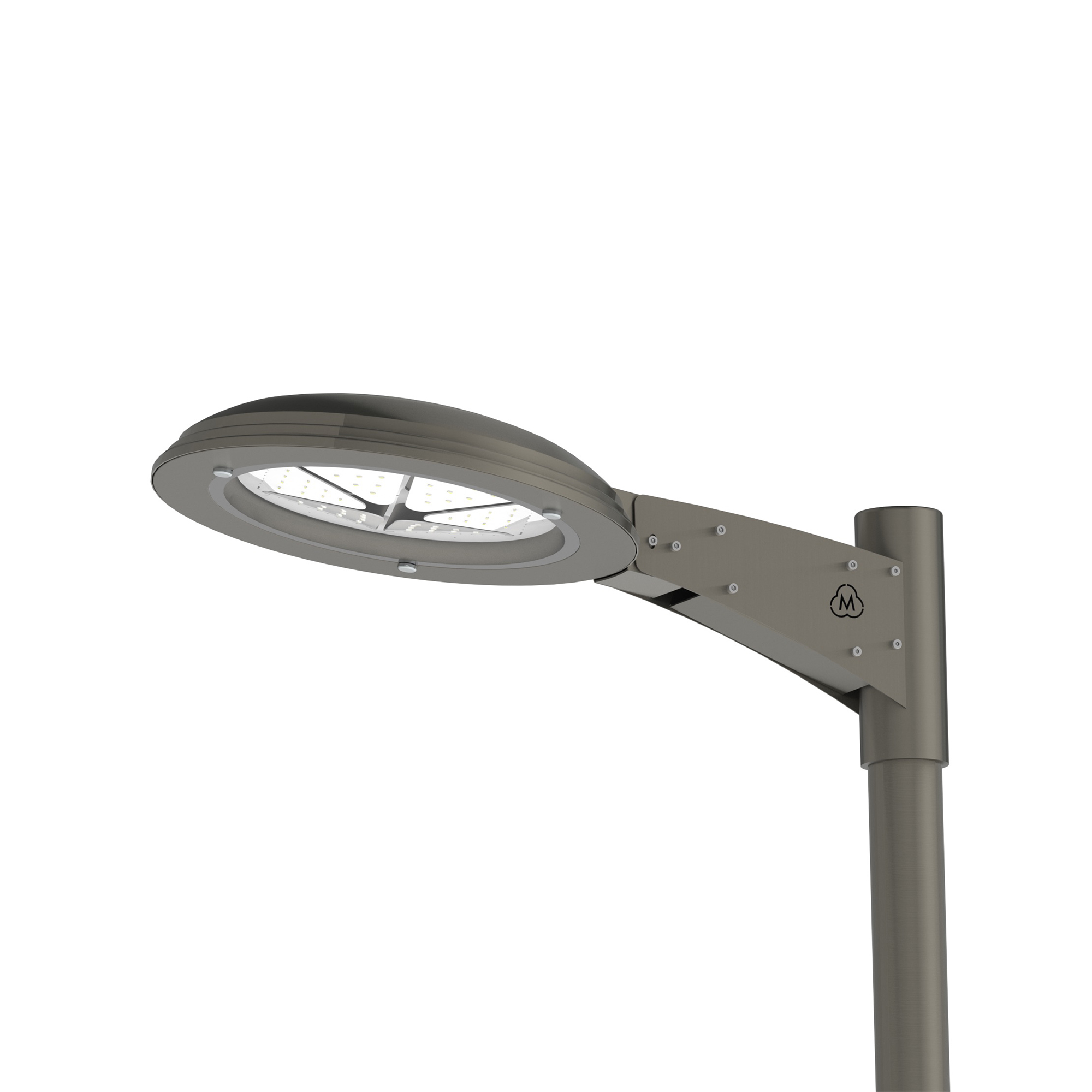

| RPS2 Series Park Garden Fixture |
| Product Codu |
RPS2-AC-72S-40-[XXXX-ST] |
RPS2-AC-72S-60-[XXXX-ST] |
| Optical Specifications |
| Luminous Flux |
5.200 lm |
7.800 lm |
| Power |
40 W |
60 W |
| CCT |
3000 K , 4000 K , 5000 K, 6500 K |
| CRI |
Ra>70 |
| Optics |
140 Degree |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
2 kV |
| Power Frequency |
50/60 Hz |
| PFC |
>0.90 |
| Environmental |
| IP Protection |
IP65 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium |
| Protection Class |
Class I |
| Dimensions |
| Net Weight |
8 Kg |
8 Kg |
| Box Dimensions |
560x870x350 mm |
560x870x350 mm |
| Other Details |
| Warranty |
2 Years |
| Dim Specially |
0-10 V or Uncontrolled |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
