76 – 89 mm diameter input console is suitable for installation from below . Easy intervention to the drive bay. Led with over 50,000 hours of operating life in accordance with the LM80 and TM21 standards.
High efficiency LED technology. Transparent tempered glass with high permeability, protected against heat and impacts. Electrostatic powder coated , aluminum injection body.

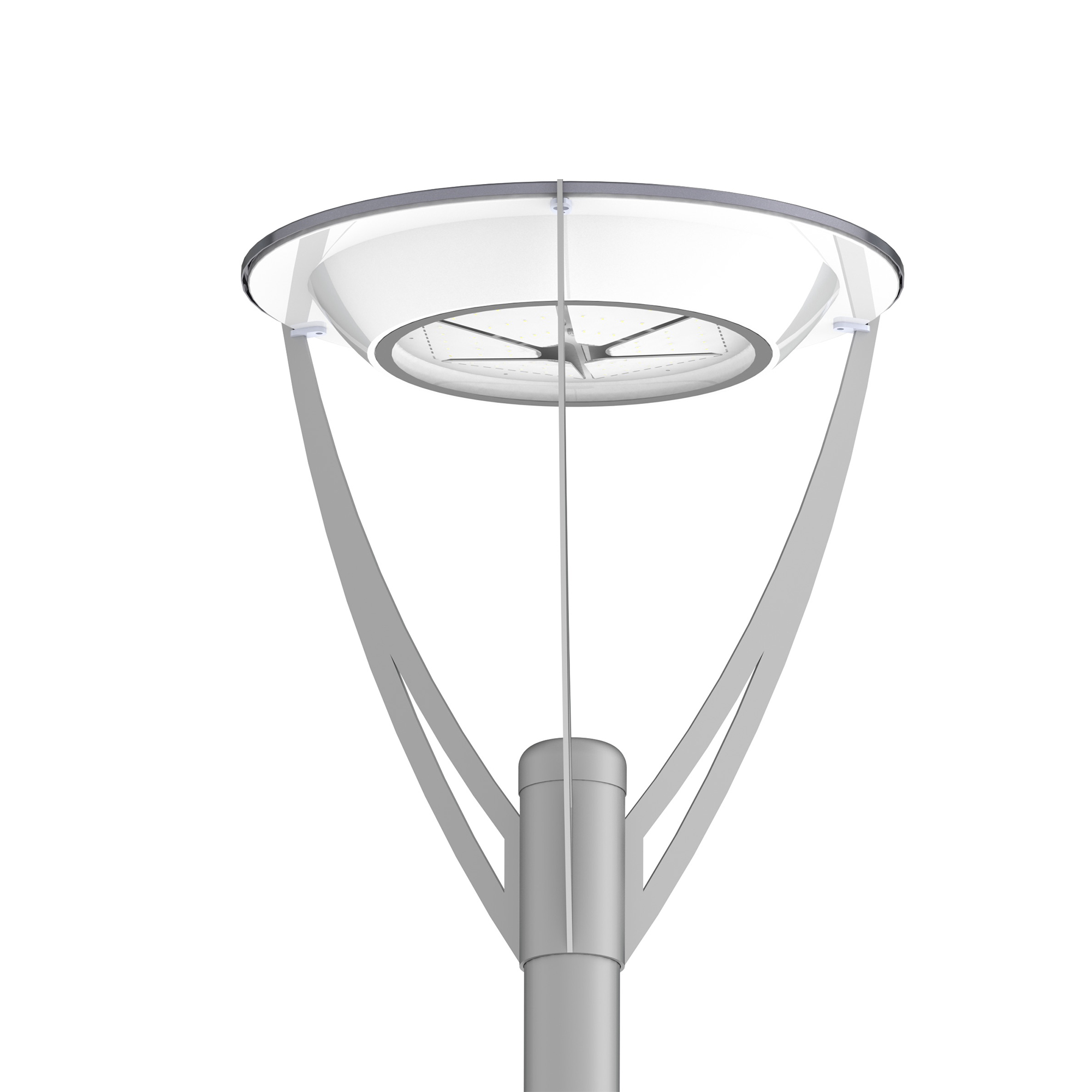

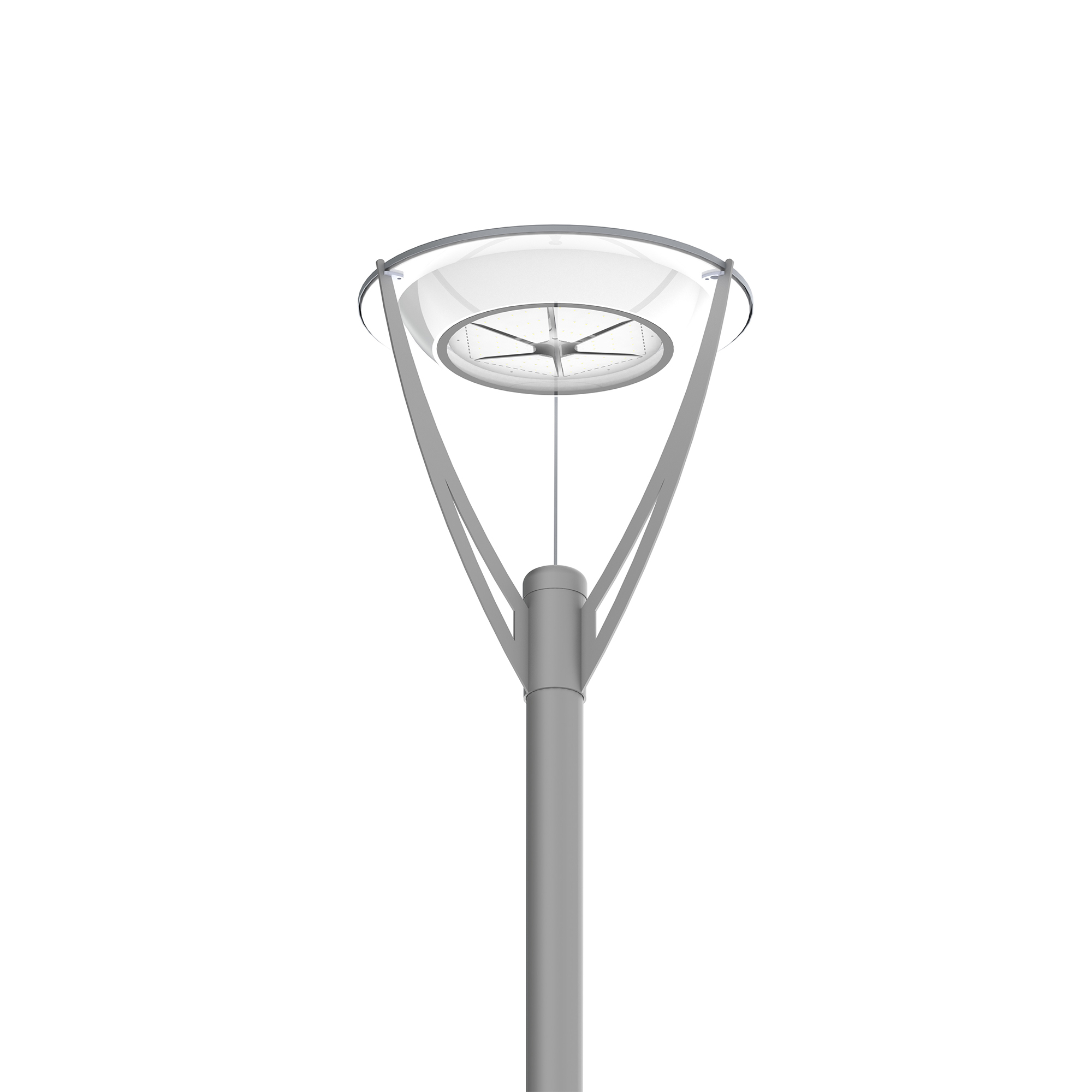

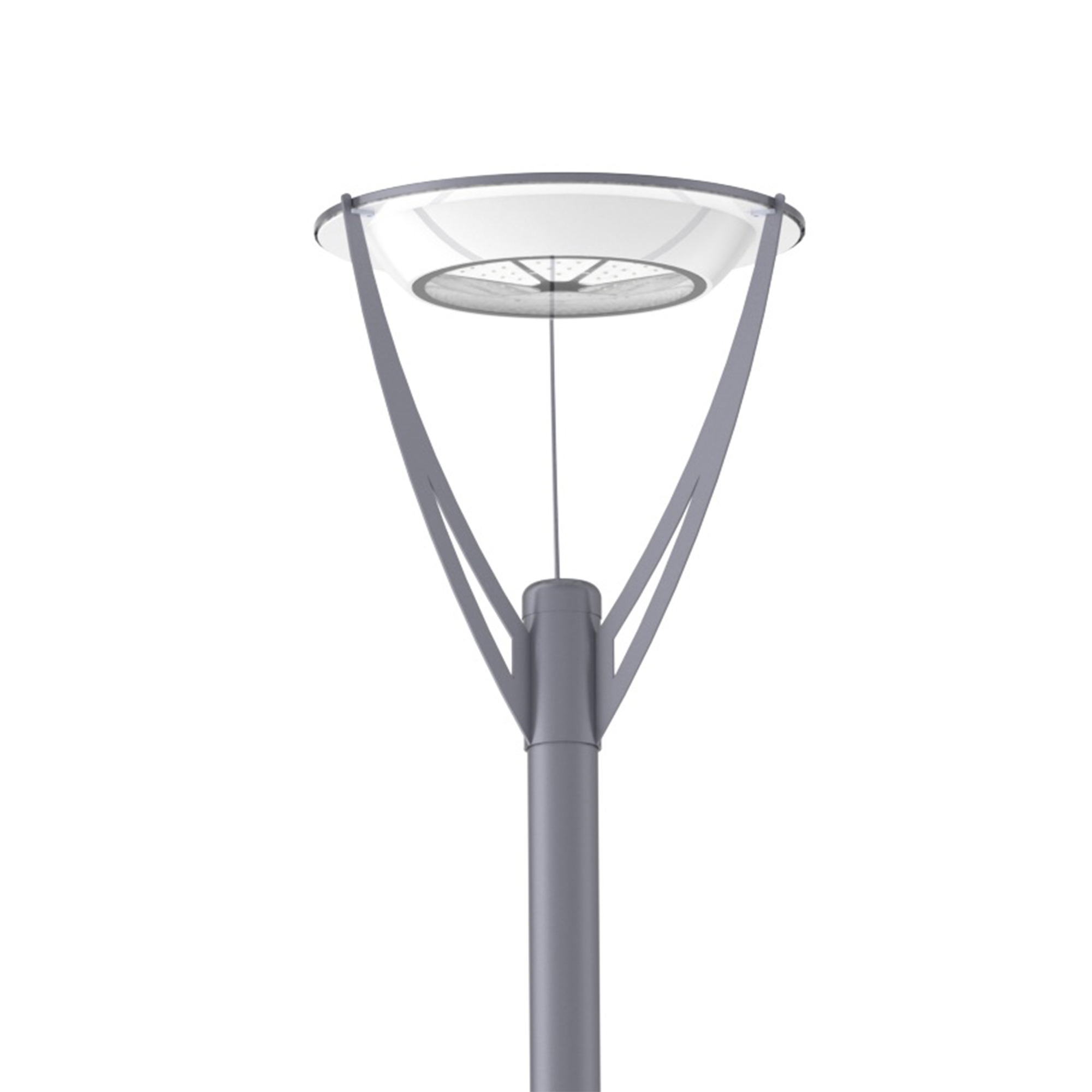

| RPS5 Series Park Garden Fixture |
| Product Codu |
RPS5-AC-72S-40-[XXXX-ST] |
RPS5-AC-72S-60-[XXXX-ST] |
| Optical Specifications |
| Luminous Flux |
4.800 lm |
7.200 lm |
| Power |
40 W |
60 W |
| CCT |
3000 K , 4000 K , 5000 K, 6500 K |
| CRI |
Ra>70 |
| Optics |
140 Degree |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
2 kV |
| Power Frequency |
50/60 Hz |
| PFC |
>0.90 |
| Environmental |
| IP Protection |
IP65 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium |
| Protection Class |
Class I |

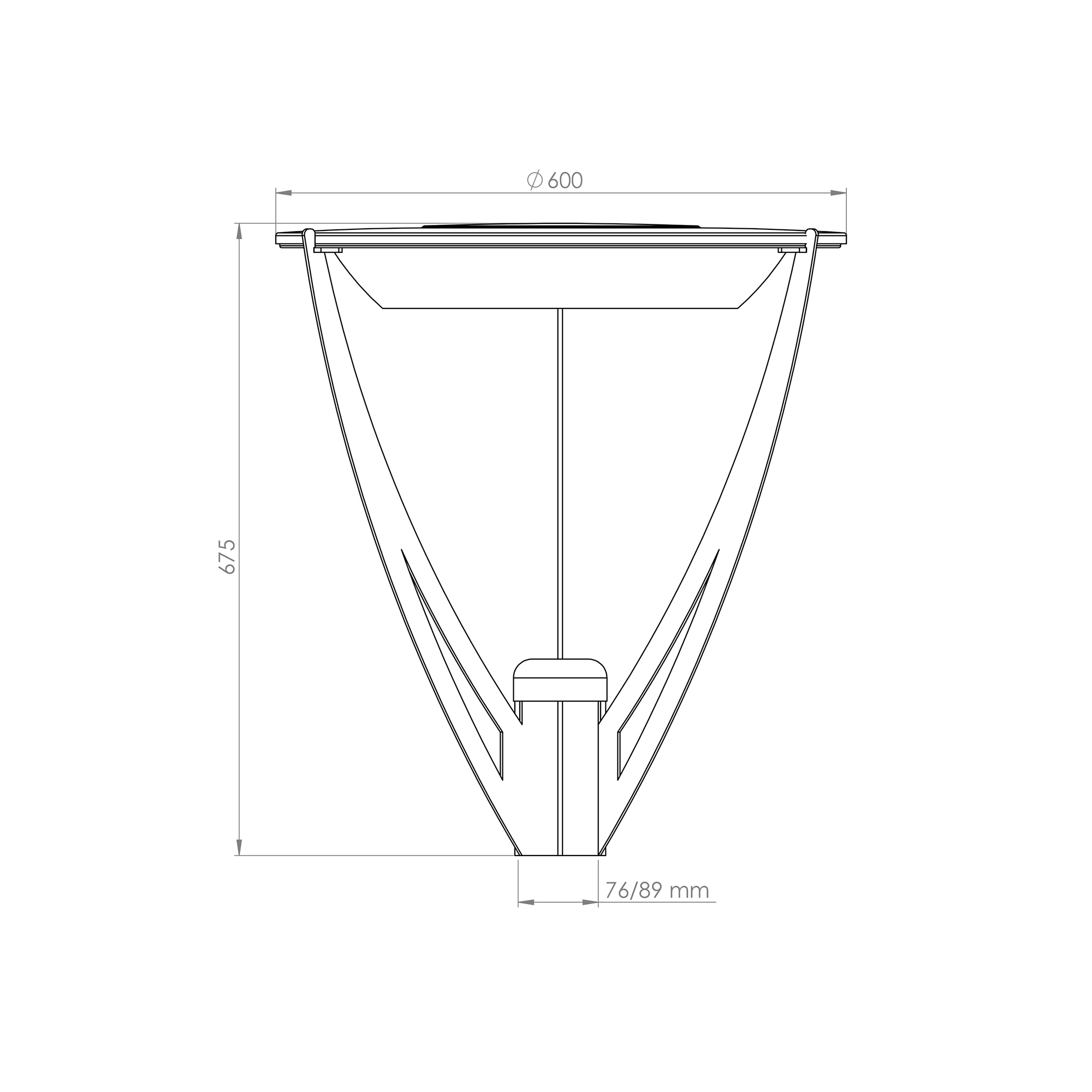

| Dimensions |
| Net Weight |
8 Kg |
8 Kg |
| Box Dimensions |
600x600x675 mm |
600x600x675 mm |
| Other Details |
| Warranty |
2 Years |
| Dim Specially |
0-10 V or Uncontrolled |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
