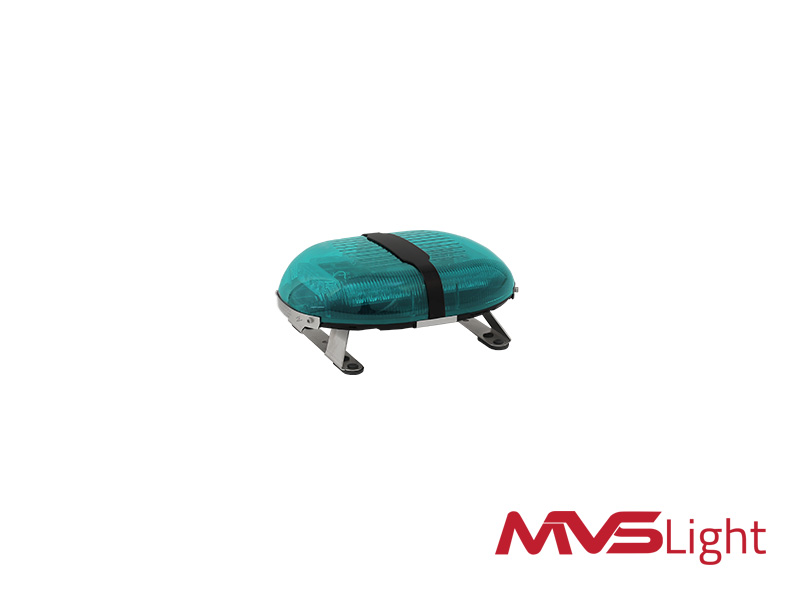

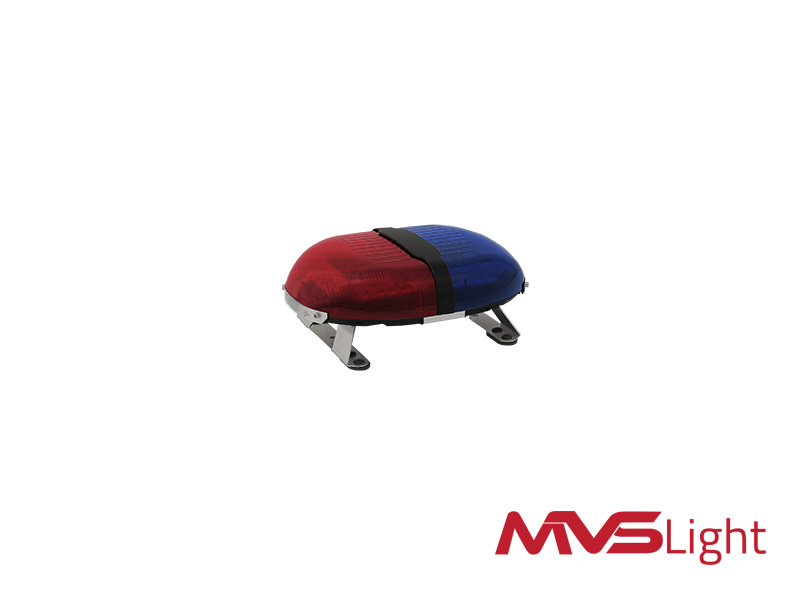

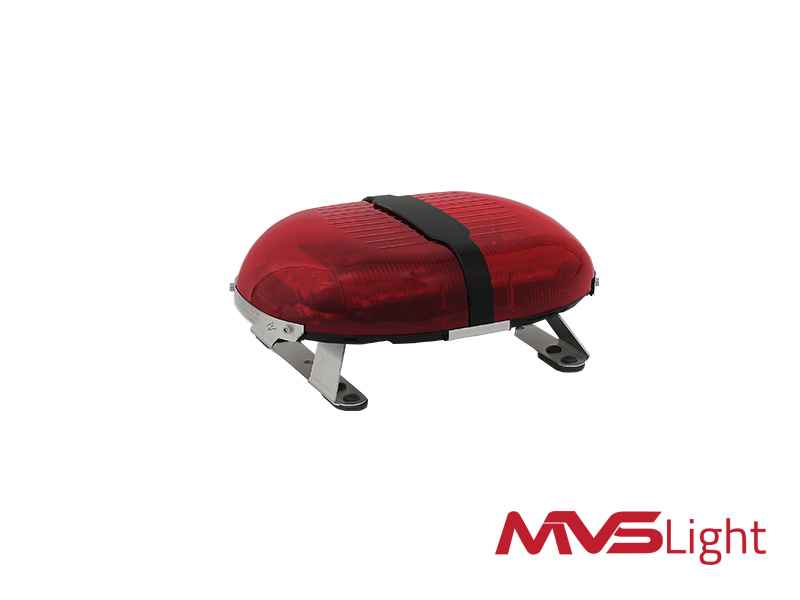

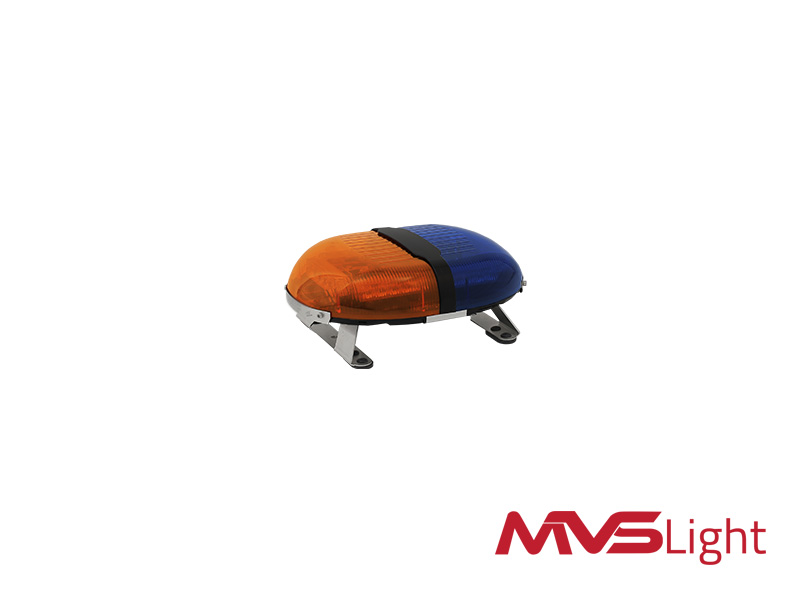

15 " E Type Multi LED Light Bar

E Model 37 Multi CM
E Model 37 Multi CM
E Model 37 Multi CM
E Model 37 Multi CM

• Compact and aerodynamic design minimizes air resistance in high speed vehicles.
• Transparent polycarbonate outer and inner lens provides clear signal light transmission.
• Stainless steel materials, including mounting and connection parts.
• Strong mechanical strength, heat, and UV light resistance.
• Excellent protection from vibration, dust, moisture and high temperature.
• Available in customized color arrangements: Clear/Red/Blue/Amber/Green.
• Lead-free solder and electronic component manufactured accordance with European standards.
• LED Light Bars manufactured under EMC/EMI standards.
• Ready to be customized to meet your special requirements.
• Protection rating: IP65


Product Code

E – 03722 / CM

Operating Voltage

9 – 30 VDC

LED

3 WATT POWER LED

LED Life time

100.000 Hours

Flashing mode

7

Flashing sequence

2 – 4 Hz

Dimensions (mm)

370×275×80

Mounting

Fixed / Magnet

Cable

3.5 M Blue (Mode), Red (VDC), Black(GND)

Standards

ECE R65, ECE R10, SAE J

Quality system

CE, ISO 9001
