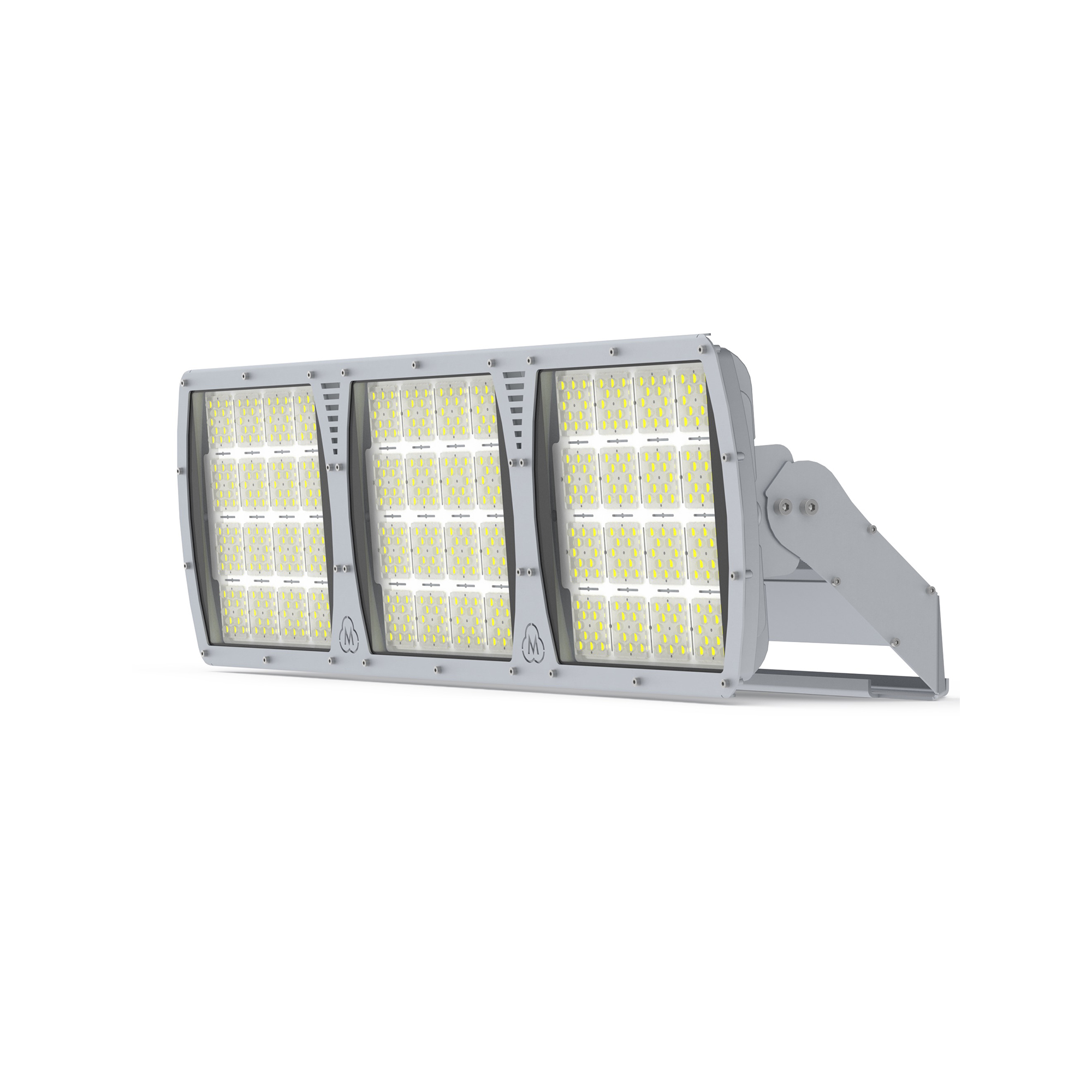

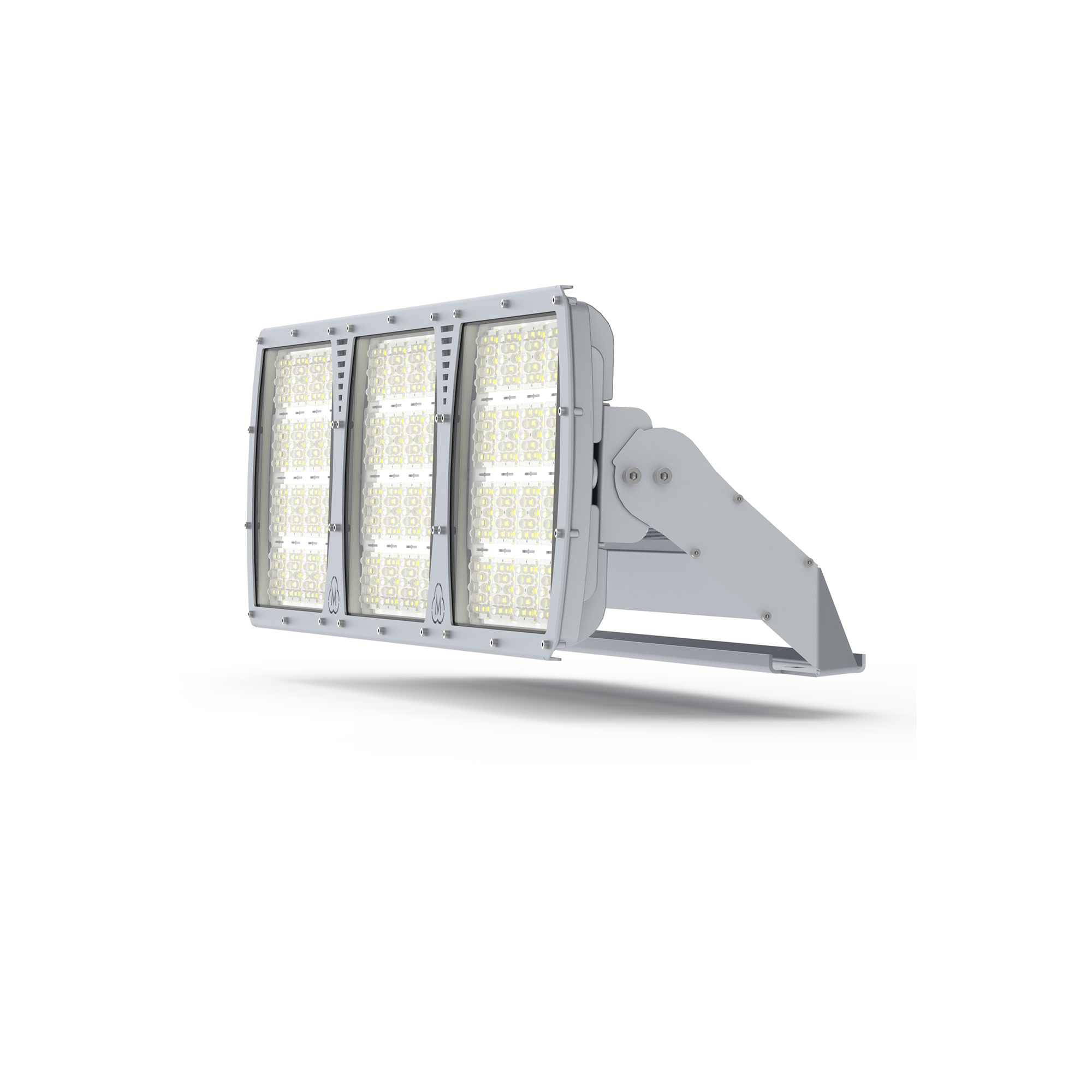

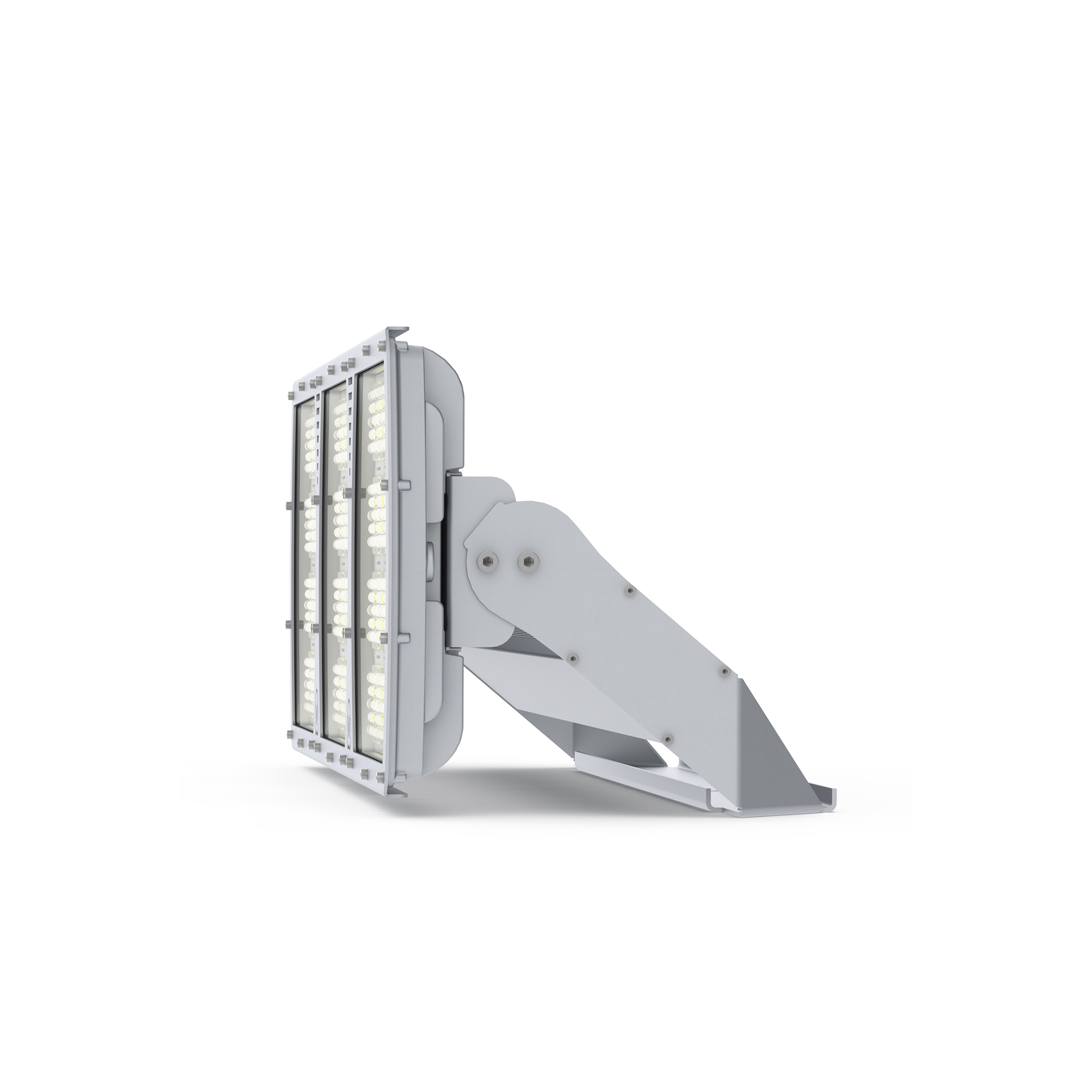

500 W Led Projector;
Innovative design and most commonly used asymmetric optics. Light efficiency up to 125 LM / W up to 75,000 LM, 5 types of optical options are available. Sports fields and field lighting, etc. suitable for applications. The U bracket and the pole mounting bracket make it perfect.
– Large optical options to fit more applications.
– High lumen output 125 LM/W.
| LPSR3 Series 400-500 W Led Projectors |
| Product Code |
LPSR3-AC-576S-400-[XXXX/XX]
|
LPSR3-AC-576S-500-[XXXX/XX] |
| Optical Specifications |
| Luminous Flux |
50.000 lm |
62.500 lm |
| Power |
400 W |
500 W |
| CCT |
3000 K , 4000 K , 5000 K, 6500 K |
| CRI |
Ra>70 |
| Optics |
30 / 60 / 90 Degree |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
10 kV |
| Power Frequency |
50/60 Hz |
| PFC |
>0.95 |
| Environmental |
| IP Protection |
IP66 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium Injection |
| Protection Class |
Class I |

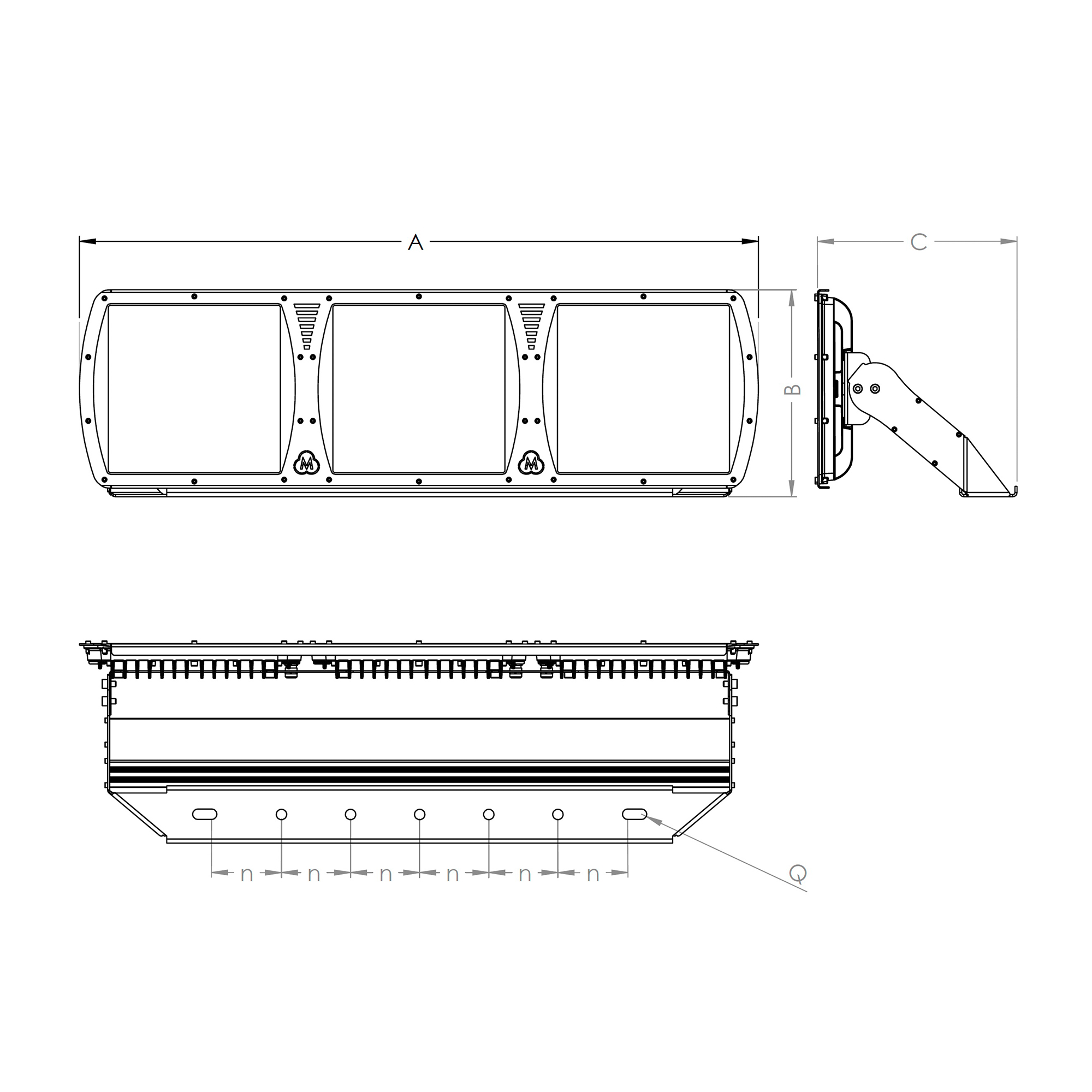

| Dimensions |
| Net Weight |
20 Kg |
20 Kg |
| Box Dimensions |
990x350x150 mm
|
990x350x150 mm
|
| Other Details |
| Warranty |
5 Years |
| Dim Specially |
0-10 V or Uncontrolled |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
