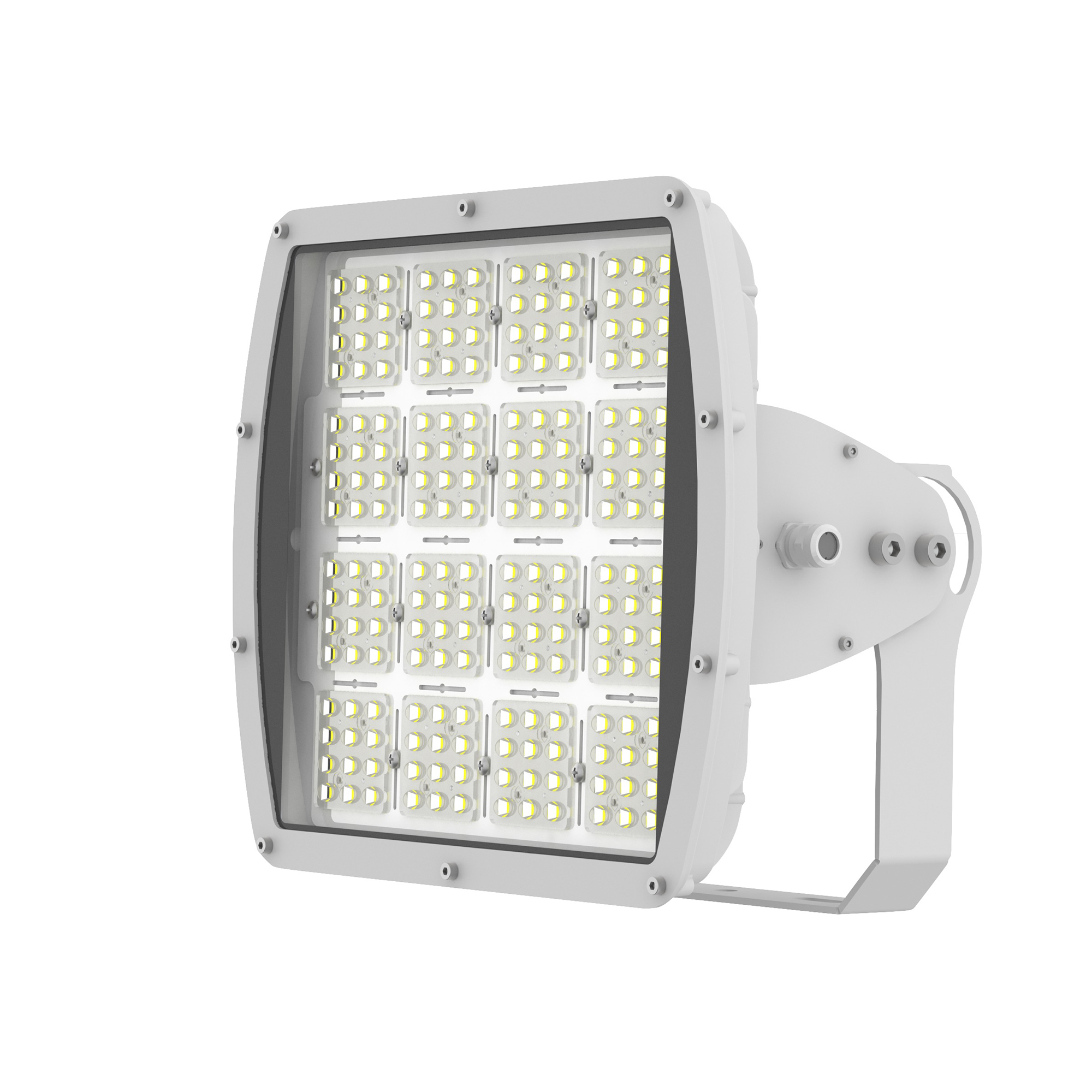

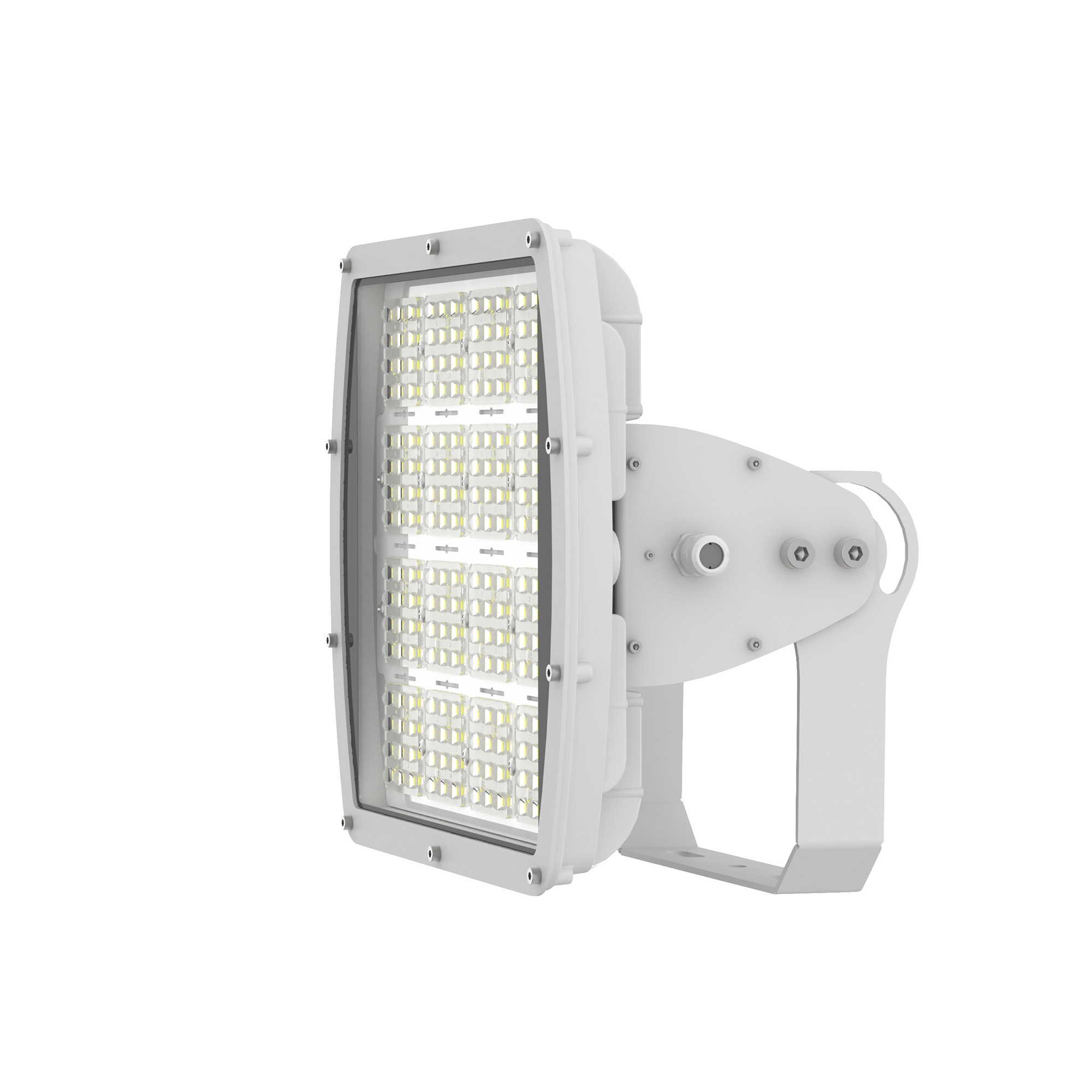

LPSR1 Series Led Projectors;

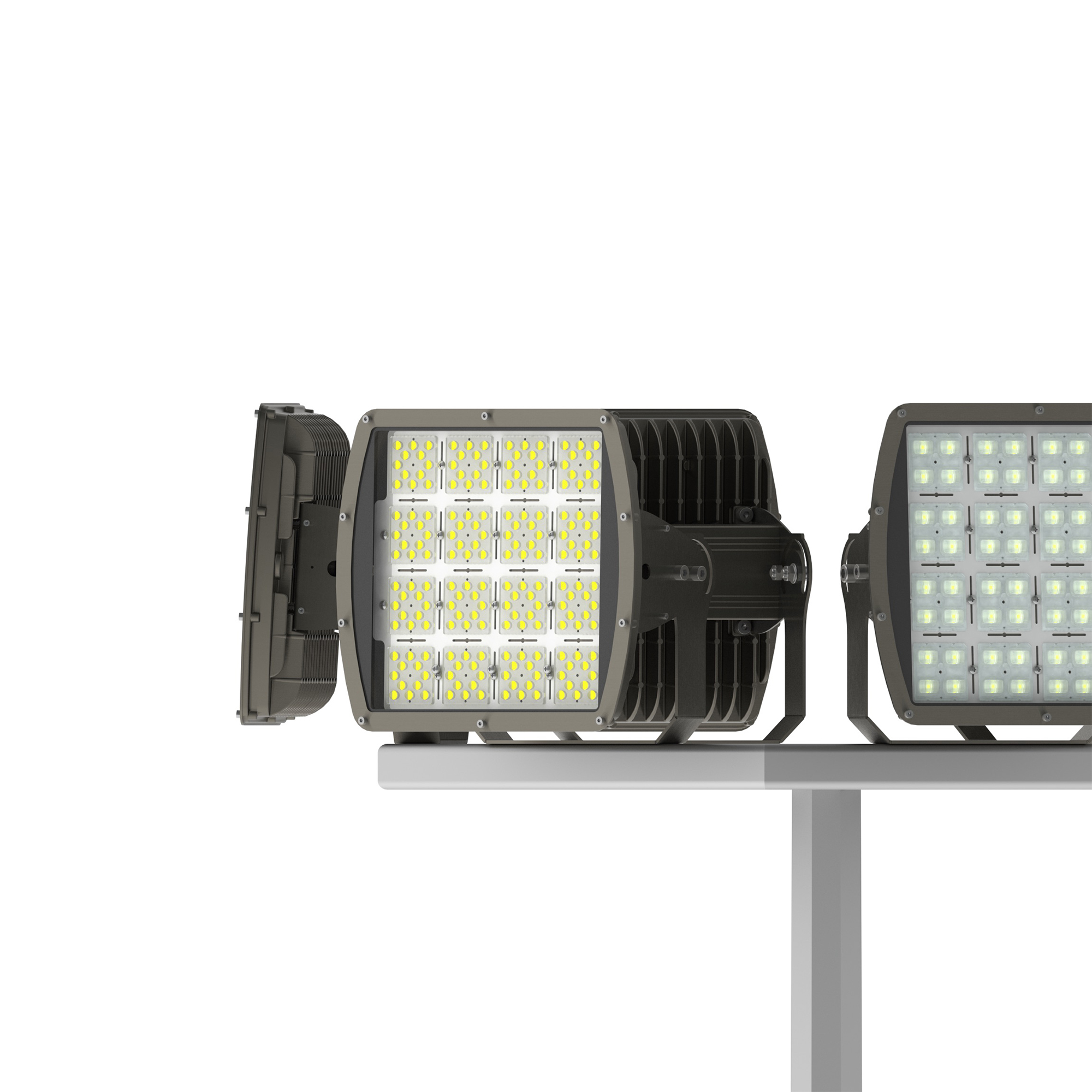

Innovative design and most commonly used asymmetric optics. Light efficiency up to 135 LM / W, 5 types of optical options are available. Sports fields and field lighting, etc. suitable for applications. The U bracket and the pole mounting bracket make it perfect.
-Large optical options to fit more applications.
-High lumen output 135 LM/W.
| LPSR1 Series Projector Product Groups |
| Product Code |
LPSR1-AC-144S-90-[XXXX/XX]
|
LPSR1-AC-144S-100-[XXXX/XX]
|
LPSR1-AC-192S-120-[XXXX/XX] |
LPSR1-AC-192S-150-[XXXX/XX] |
| Optical Specifications |
| Luminous Flux |
12.000 lm |
13.500 lm |
15.600 lm |
19.500 lm |
| Power |
90 W |
100 W |
120 W |
150 W |
| CCT |
3000 K , 4000 K , 5000 K , 6500 K |
| CRI |
Ra>70 |
| Optics |
30 / 60 / 90 Degree |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
2 kV |
| Power Frequency |
50/60 Hz |
| PFC |
>0.90 |
| Environmental |
| IP Protection |
IP66 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium Injection |
| Protection Class |
Class I |

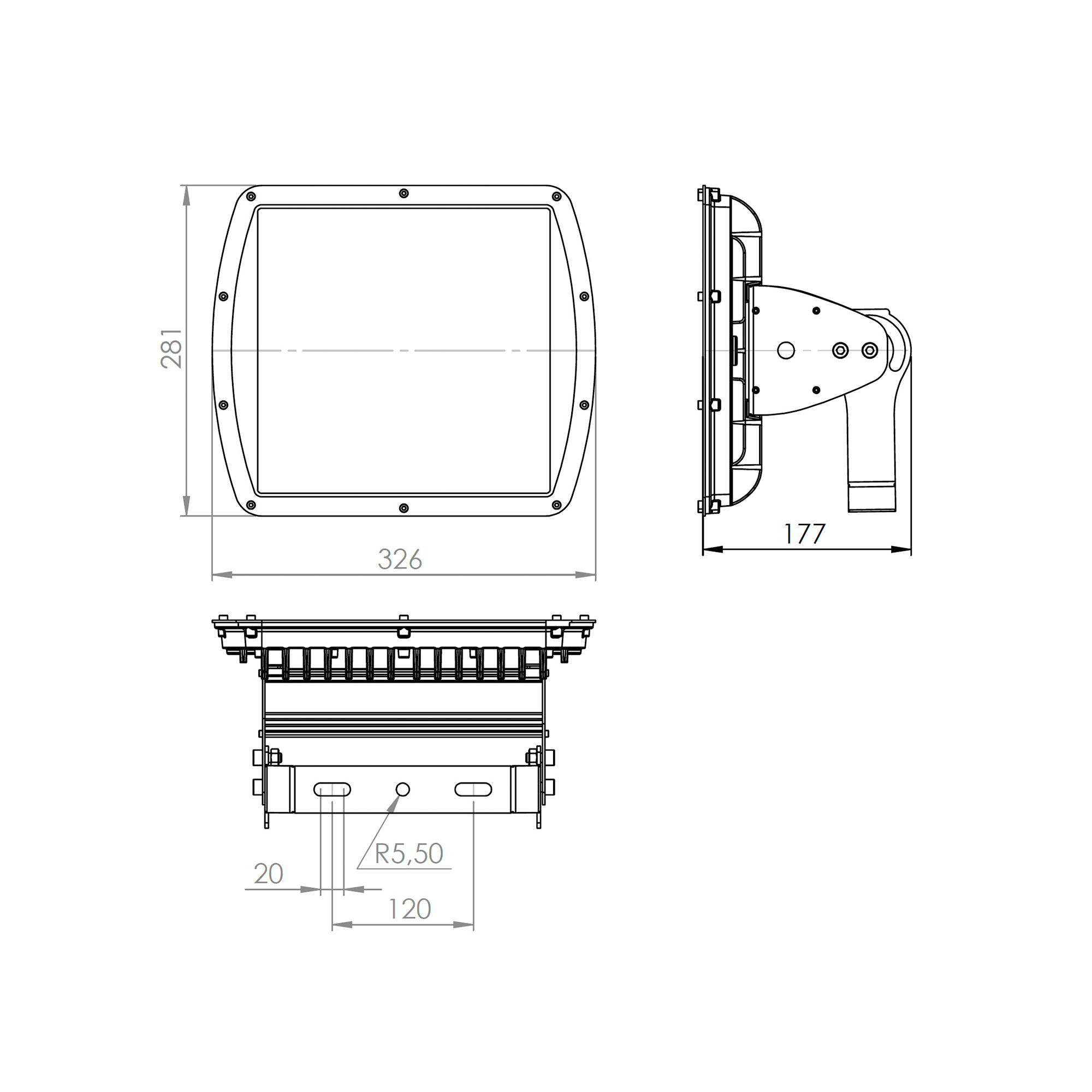

| Dimensions |
| Net Weight |
7 Kg |
7 Kg |
7 Kg |
7 Kg |
| Box Dimensions |
335x310x190 mm
|
335x310x190 mm
|
335x310x190 mm
|
335x310x190 mm
|
| Other Details |
| Warranty |
5 Years |
| Dim Specially |
0-10 V or Uncontrolled |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
