EDS Series High Bay Light

EDS Series High Bay Light;

High performance aluminium body design for heat dissipation, light output up to 130 LM /W with multiple optical structure, lightweight design and compact design deliver high energy savings. Suitable for warehouses, factories, market places and indoor sports facilities.

  • Can be produced in the range of 90 to 150 W
  • Can be produced with desired RAL codes
Industrial Fixture Product Groups
Product Code EDS-AC-144S-90-[XXXX-XX] EDS-AC-144S-100-[XXXX-XX] EDS-AC-192S-150-[XXXX-XX]
Optical Specifications
Luminous Flux 11.700 lm 13.000 lm 18.500 lm
Power 90 W 100 W 150 W
CCT 3000 K , 4000 K , 5000 K, 6500 K
CRI Ra>70
Optics 30 / 60 / 90 / 120 Degree
Elektrical Specifications
Input Voltage 200-240 VAC
Surge Protection 6 kV
Power Frequency 50/60 Hz
PFC >0.90
IP Protection IP66
LED Life Span >50,000Hrs(Ta=30°C@L70)
Operating Temperature -30°C to +50°C
Operating Humidity 15-90%RH
Housing Aluminium Injection
Protection Class Class I
Net Weight 6 Kg 6 Kg 6 Kg

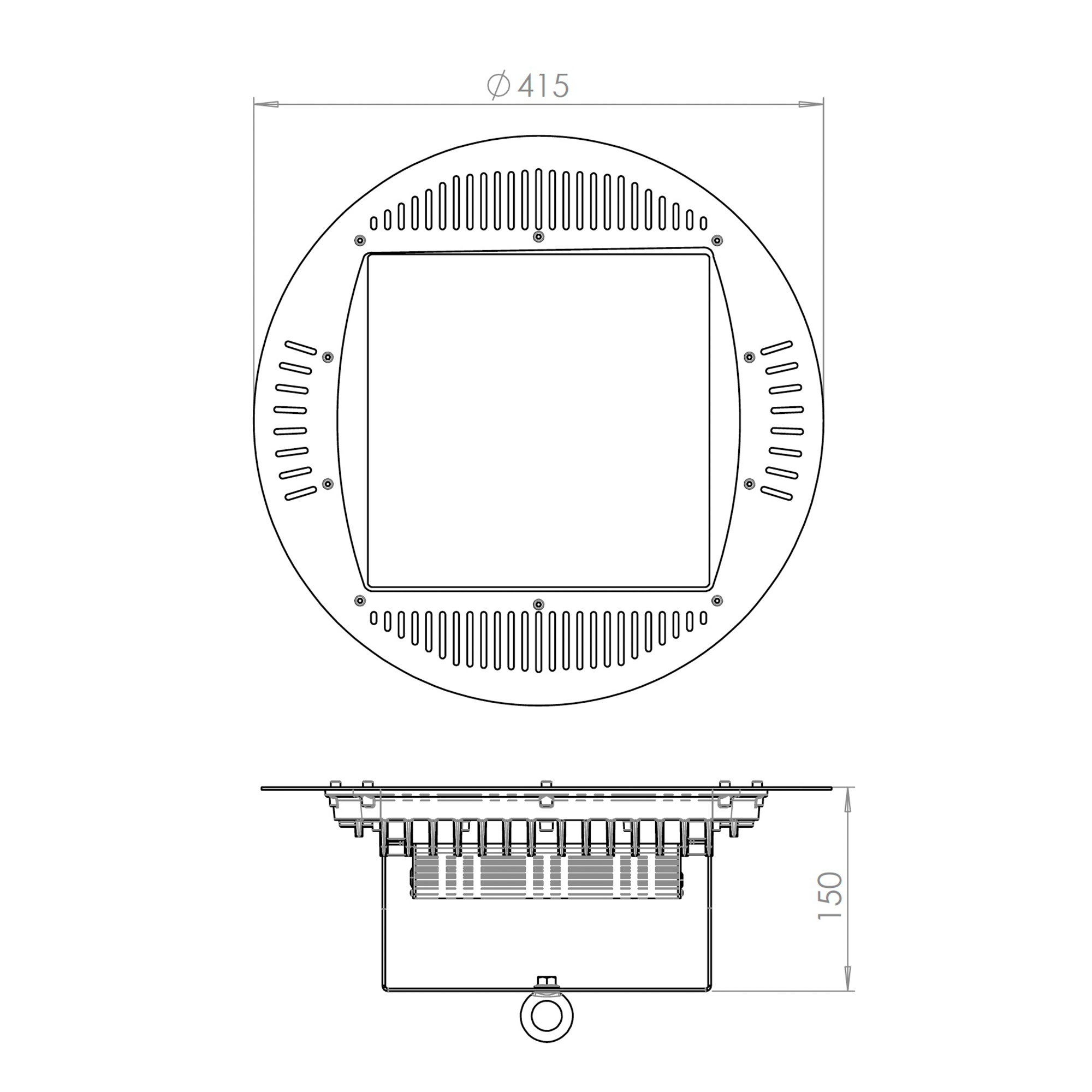

Box Dimensions 420x420x160 mm
Other Details
Warranty 5 Years
Dim Specially 0-10 V or Uncontrolled
Intelligent Control Dali , Step Dim, Timer,  Zegbee , Daylight Sensor
Body Colour Gri Silver
