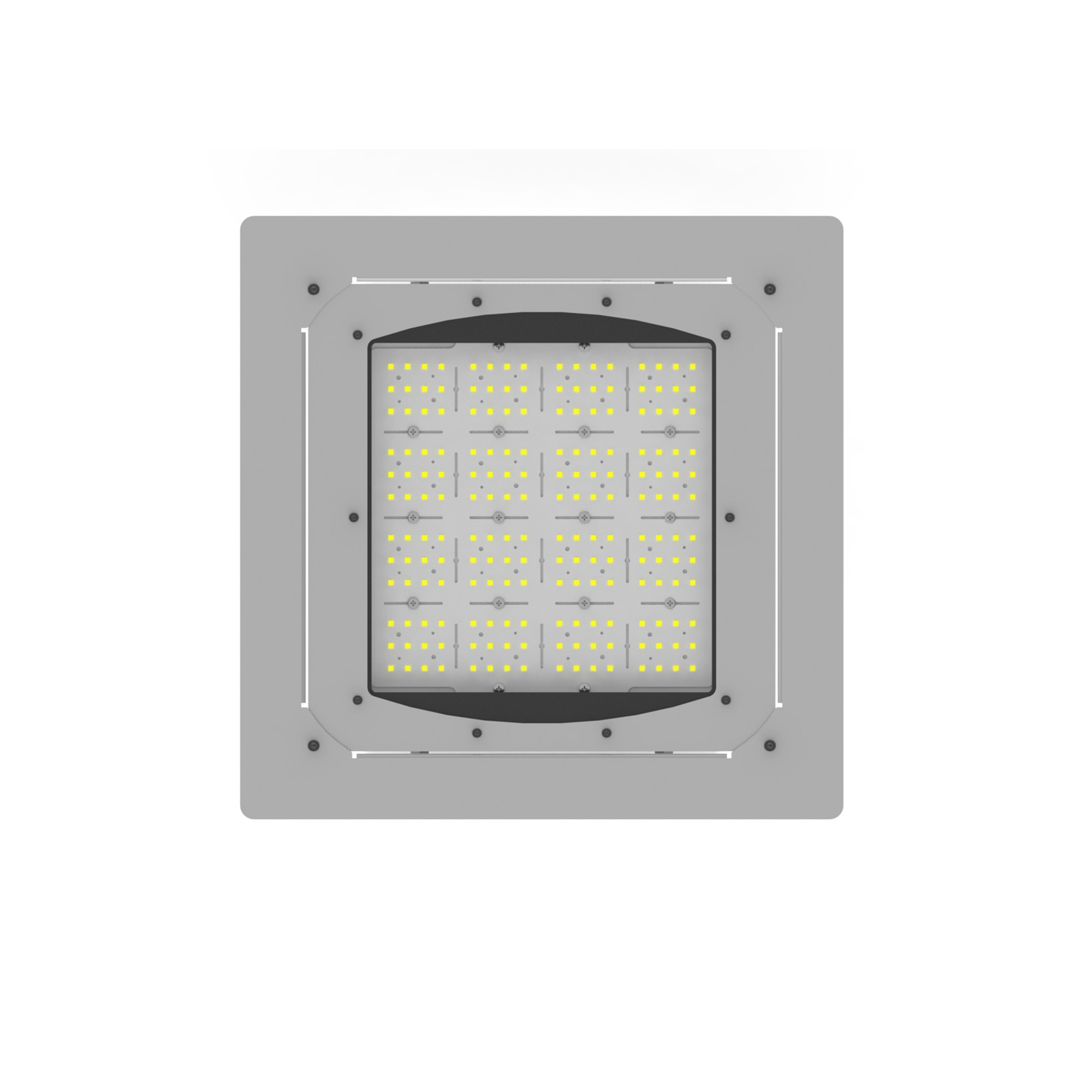

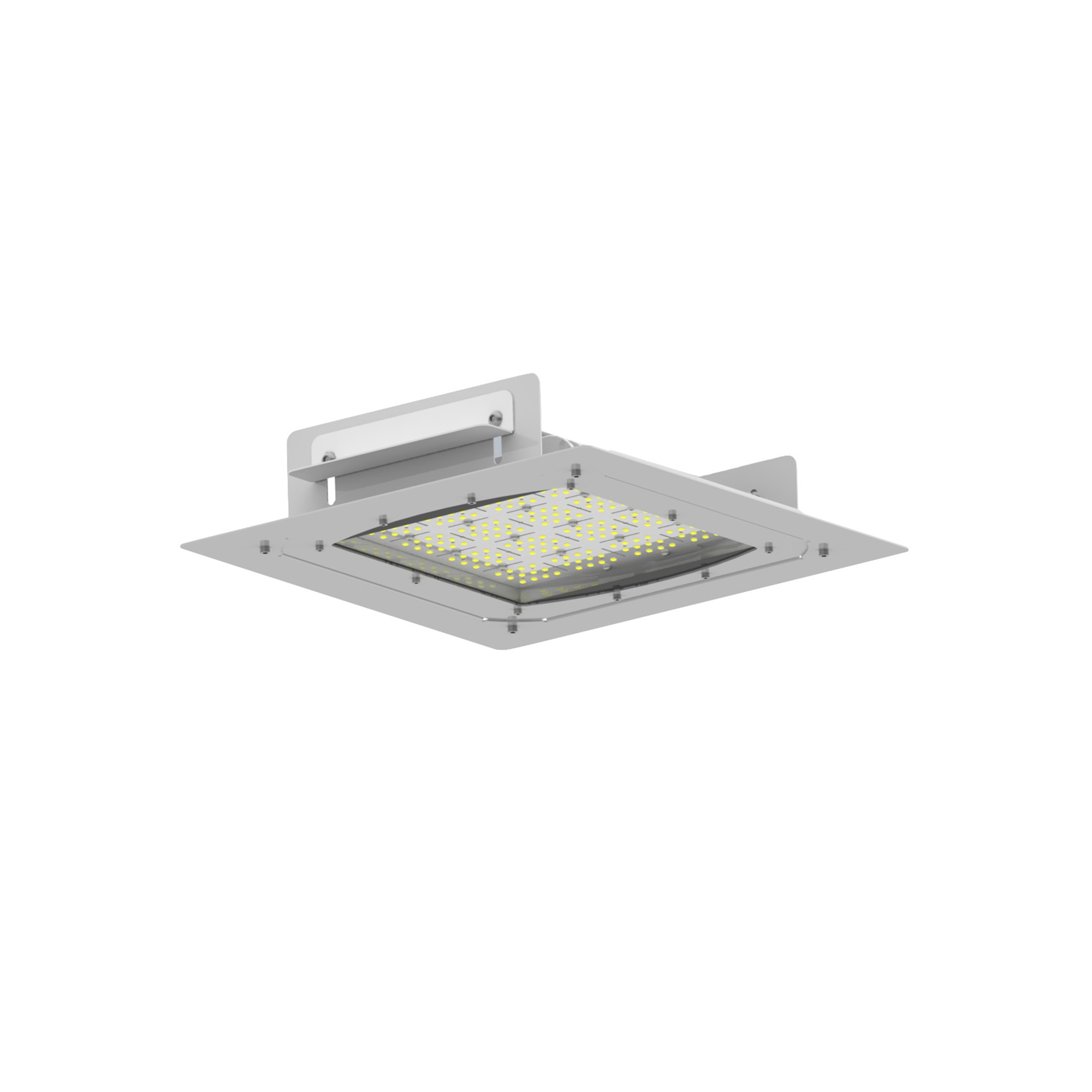

LKSR1 Series LED Canopy Light ;
High performance and economical cost-effective gas-station fixture. Min 125 LM/w efficiency, high IP[66] level,IK08 shock resistance and 6-10Kv guards are available.Offers easy mounting with standard and custom frame options. Drilling, cutting, etc. it doesn’t require labor.
- Can be produced in the range of 90 to 150 W
| LKSR1 Series Gas-Station Fixture Product Groups |
| Product Code |
LKSR1-AC-192S-90-[XXXX-XX] |
LKSR1-AC-192S-100-[XXXX-XX] |
LKSR1-AC-192S-150-[XXXX-XX] |
| Optical Specifications |
| Luminous Flux |
11.250 lm |
12.500 lm |
18.750 lm |
| Power |
90 W |
100 W |
150 W |
| CCT |
3000 K , 4000 K , 5000 K , 6500 K |
| CRI |
Ra>70 |
| Optics |
90 -120 Degree |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
6 kV |
| Power Frequency |
50/60 Hz |
| PFC |
>0.95 |
| Environmental |
| IP Protection |
IP66 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium Injection |
| Protection Class |
Class I |
| Dimensions |
| Net Weight |
7 Kg |
7 Kg |
7 Kg |

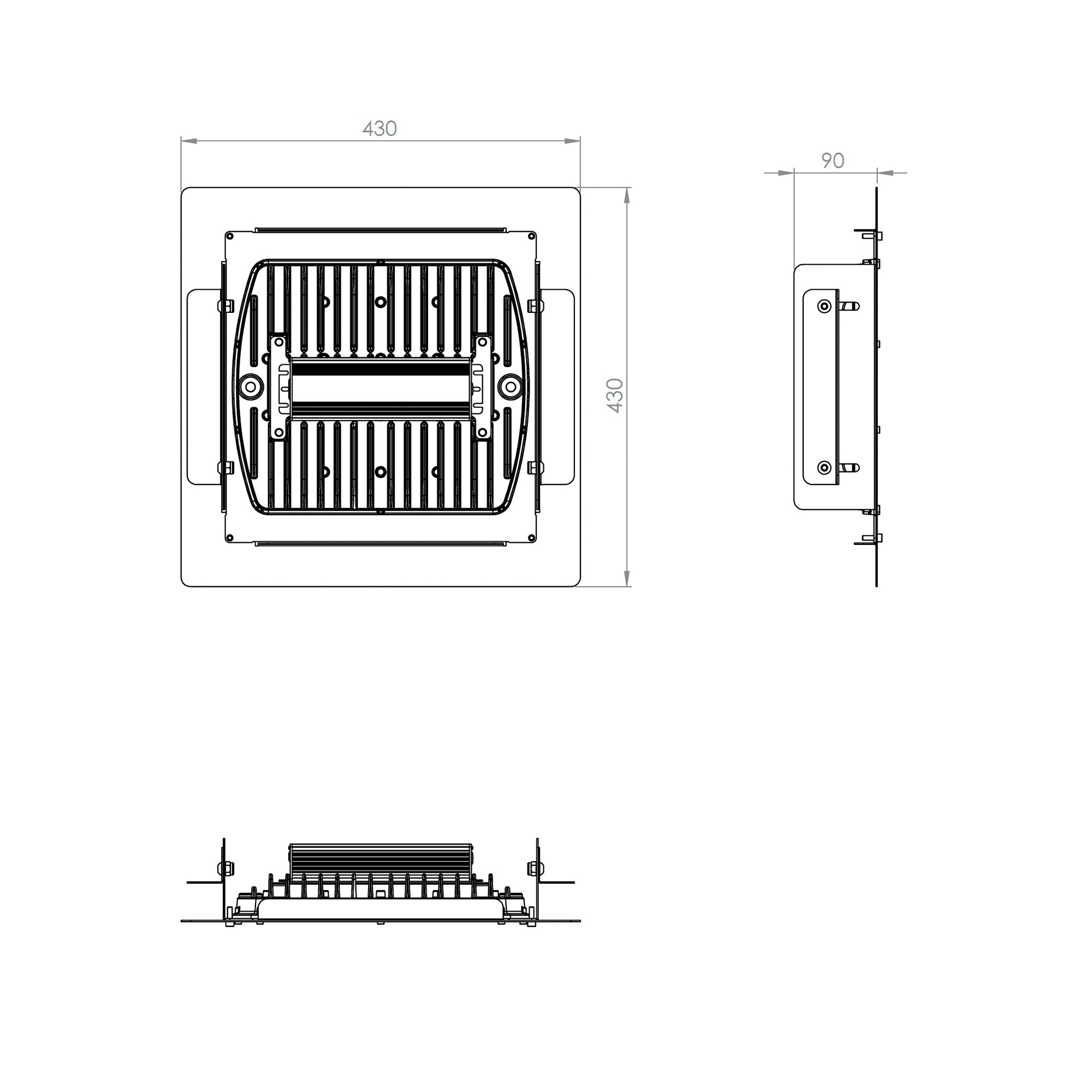

| Box Dimensions |
440x440x100 mm |
| Other Details |
| Warranty |
5 Years |
| Dim Specially |
0-10 V or Uncontrolled |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
