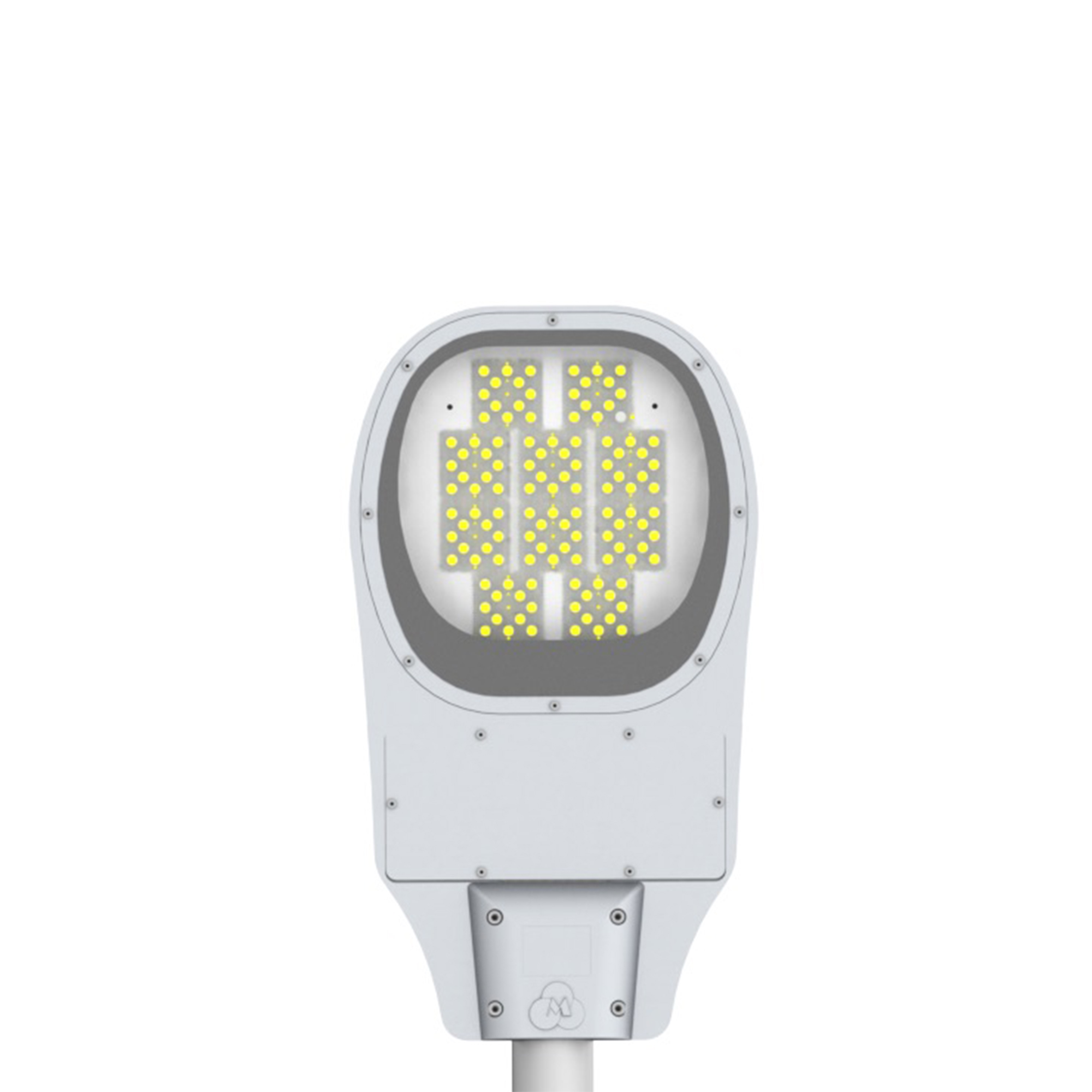

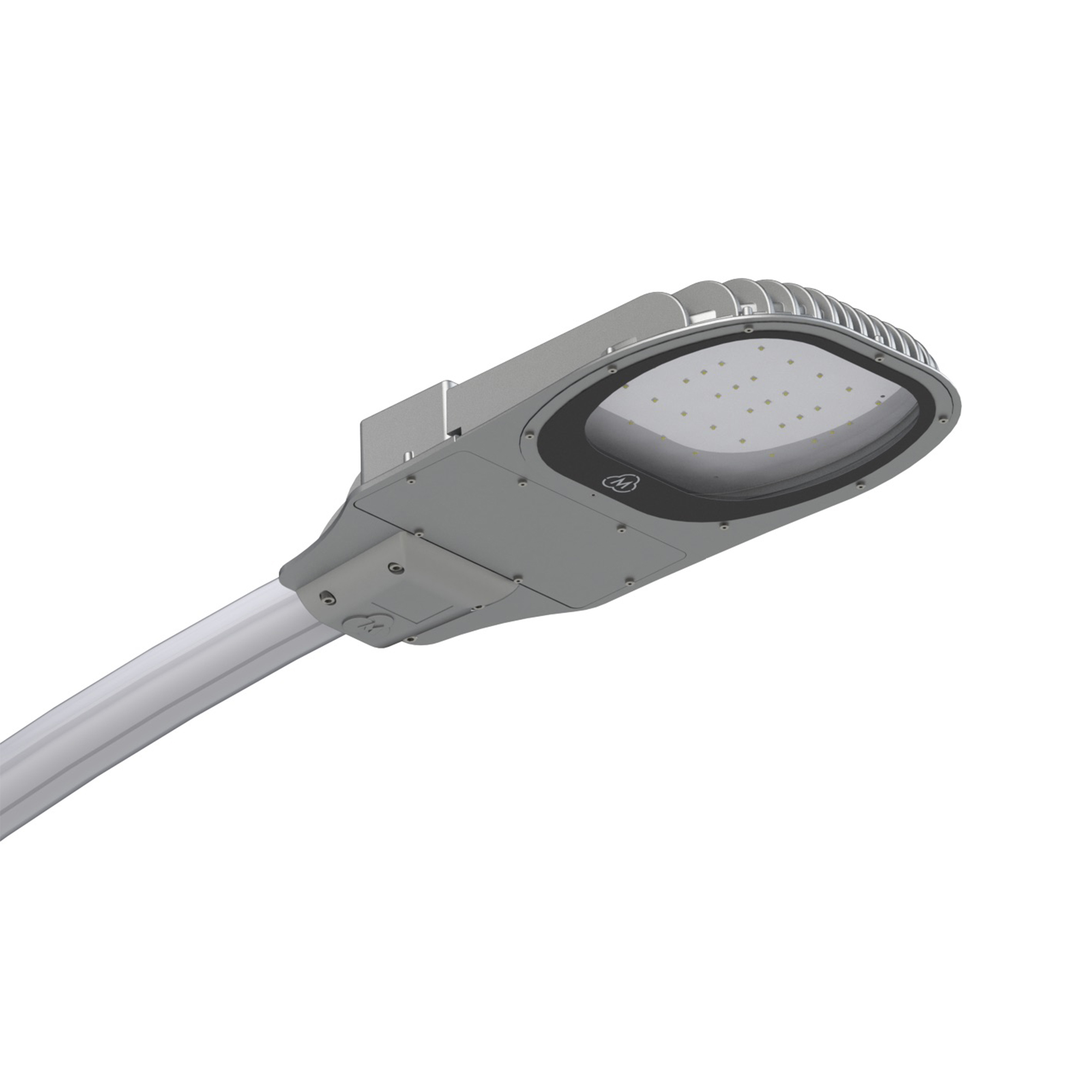

HPS1Y Series Led Street Fixture ;
42 – 60 mm diameter input console suitable for side mounting. Easy intervention to the drive bay. Led with over 50,000 hours of operating life in accordance with the LM80 and TM21 standards.
Polymer injection PMMA lens. High color return yield index(Ra>70). Transparent tempered glass with high permeability, protected against heat and impacts, which provides IK 08 conditions. Electrostatic powder coated , aluminum injection body.
| HPS1Y Series Product Groups |
| Product Codu |
HPS1Y-84S-80-AC-[XXXX-AS]
|
HPS1Y-120S-100-AC-[XXXX-AS] |
HPS1Y-144S-120-AC-[XXXX-AS] |
HPS1Y-144S-150-AC-[XXXX-AS] |
| Optical Specifications |
| Luminous Flux |
10.400 lm |
12.500 lm |
15.000 lm |
18.000 lm |
| Power |
80 W |
100 W |
120 W |
150 W |
| CCT |
3000 K , 4000 K , 5000 K , 6500 K |
| CRI |
Ra>70 |
| Optics |
Asymmetric |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
6 kV Line - 10 kV Line-Ground |
| Power Frequency |
50/60 Hz |
| PFC |
>0.95 |
| Environmental |
| IP Protection |
IP66 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium Injection |
| Protection Class |
Class I |
| Dimensions |
| Net Weight |
7 Kg |
7,5 Kg |
7,5 Kg |
7,5 Kg |
| Box Dimensions |
550x310x100 mm |
550x310x100 mm |
550x310x100 mm |
550x310x100 mm |
| Other Details |
| Warranty |
5 Years |
| Dim Specially |
0-10 V or Uncontrolled |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
