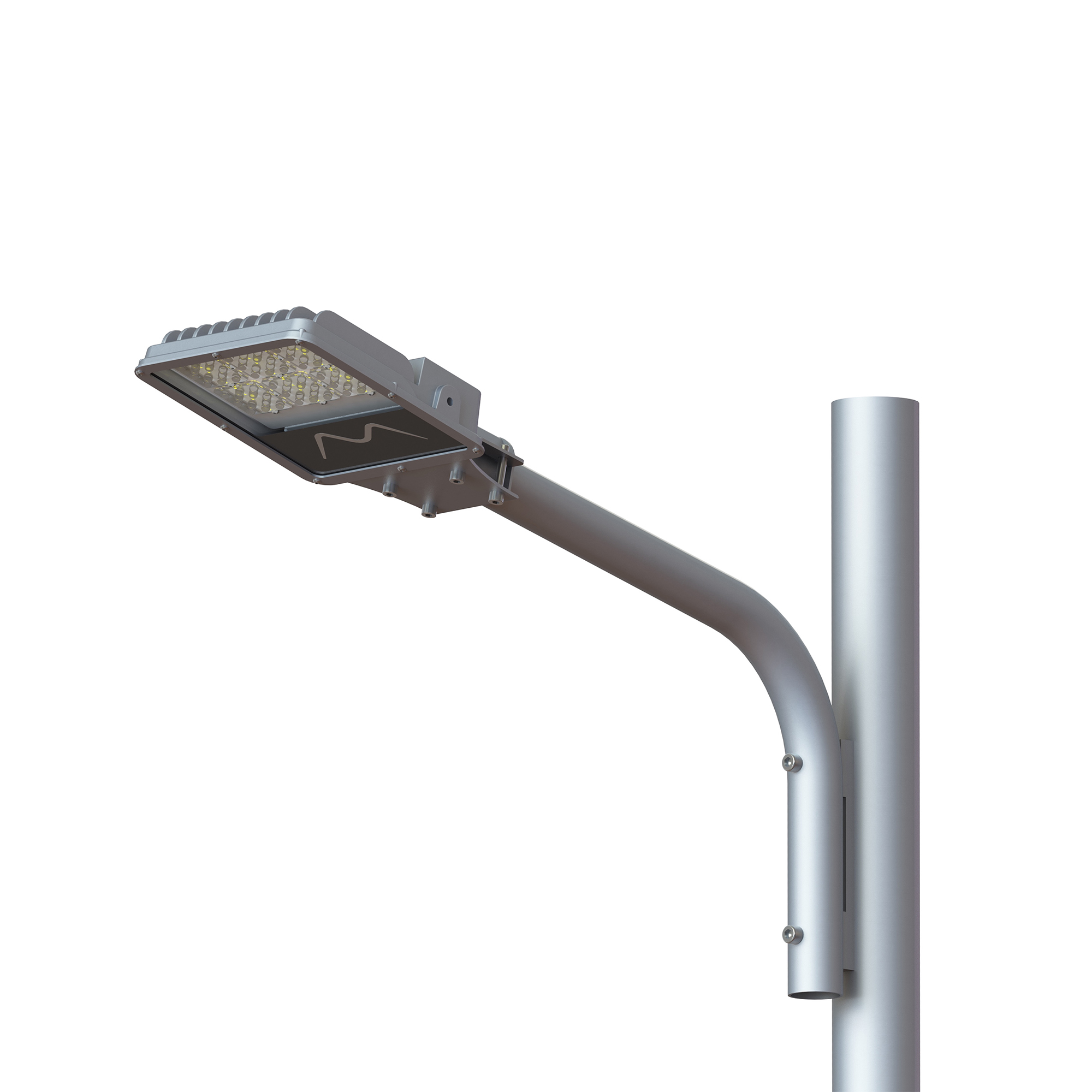

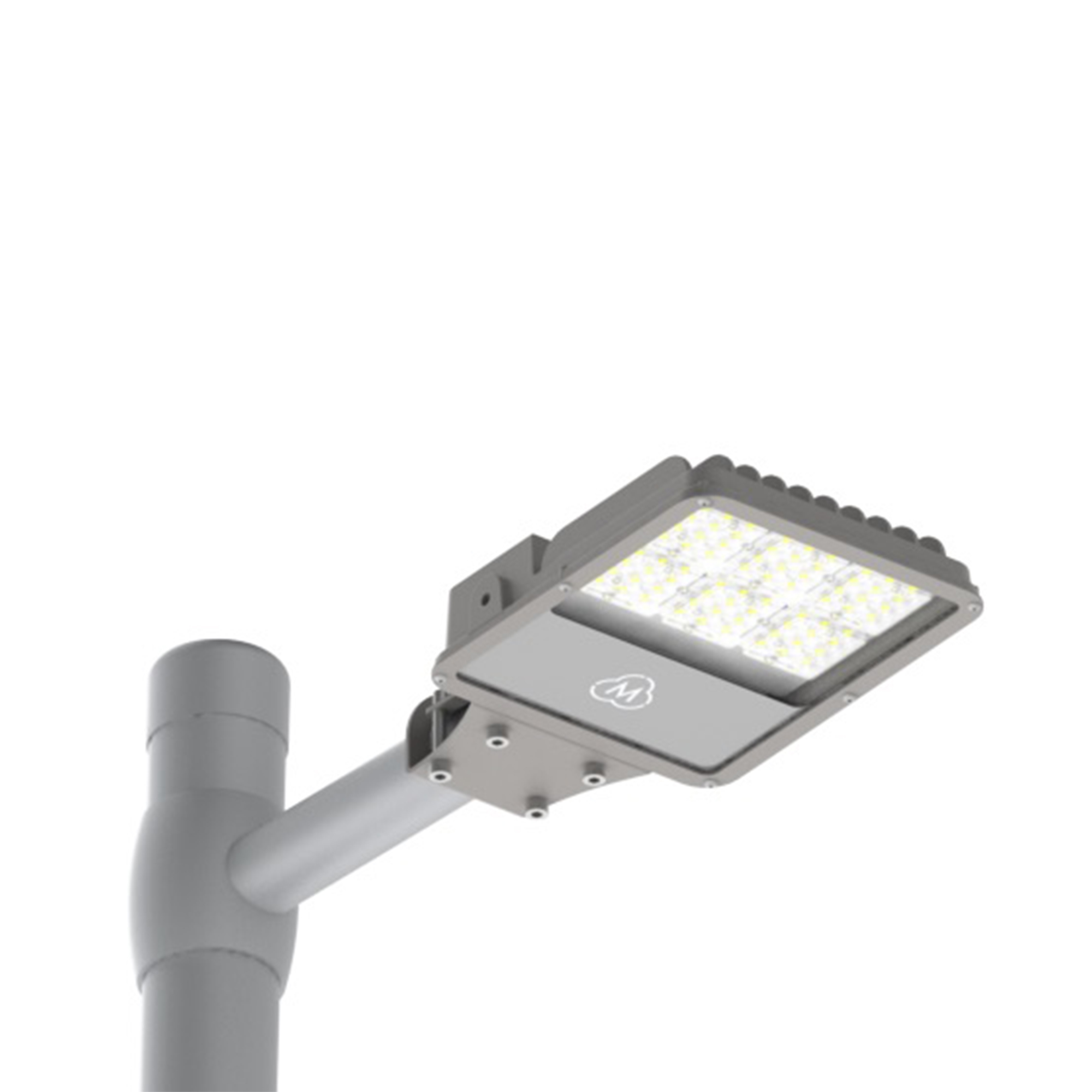

LPM-S Series Economical Led Road Fixtures;
42 – 48 mm diameter input console suitable for side mounting. Body structure designed for the best cost. Provides the best thermal value thanks to air wings.
Polymer injection does not yellowing thanks to the optical structure of PMMA. Transparent tempered glass with high permeability, protected against heat and impacts, which provides IK 08 conditions
Electrostatic powder coated , aluminum injection body.
| LPMS Series Road Fixture |
| Product Codu |
LPMS-AC-72S-40-[XXXX-AS] |
LPMS-AC-72S-60-[XXXX-AS] |
LPMS-AC-72S-70-[XXXX-AS] |
| Optical Specifications |
| Luminous Flux |
5.200 lm |
7.800 lm |
8.400 lm |
| Power |
40 W |
60 W |
70 W |
| CCT |
3000 K , 4000 K , 5000 K , 6500 K |
| CRI |
Ra>70 |
| Optics |
Asymmetric |
| Elektrical Specifications |
| Input Voltage |
200-240 VAC |
| Surge Protection |
2 kV |
| Power Frequency |
50/60 Hz |
| PFC |
>0.90 |
| Environmental |
| IP Protection |
IP66 |
| LED Life Span |
>50,000Hrs(Ta=30°C@L70) |
| Operating Temperature |
-30°C to +50°C |
| Operating Humidity |
15-90%RH |
| Housing |
Aluminium Injection |
| Protection Class |
Class I |
| Dimensions |
| Net Weight |
4 Kg |
4 Kg |
4 Kg |
| Box Dimensions |
215x350x75 mm |
215x350x75 mm |
215x360x75 mm |
| Other Details |
| Warranty |
2 Years |
| Dim Specially |
0-10 V or Uncontrolled |
| Intelligent Control |
Dali , Step Dim, Timer, Zegbee , Daylight Sensor |
| Body Colour |
Gri Silver |
