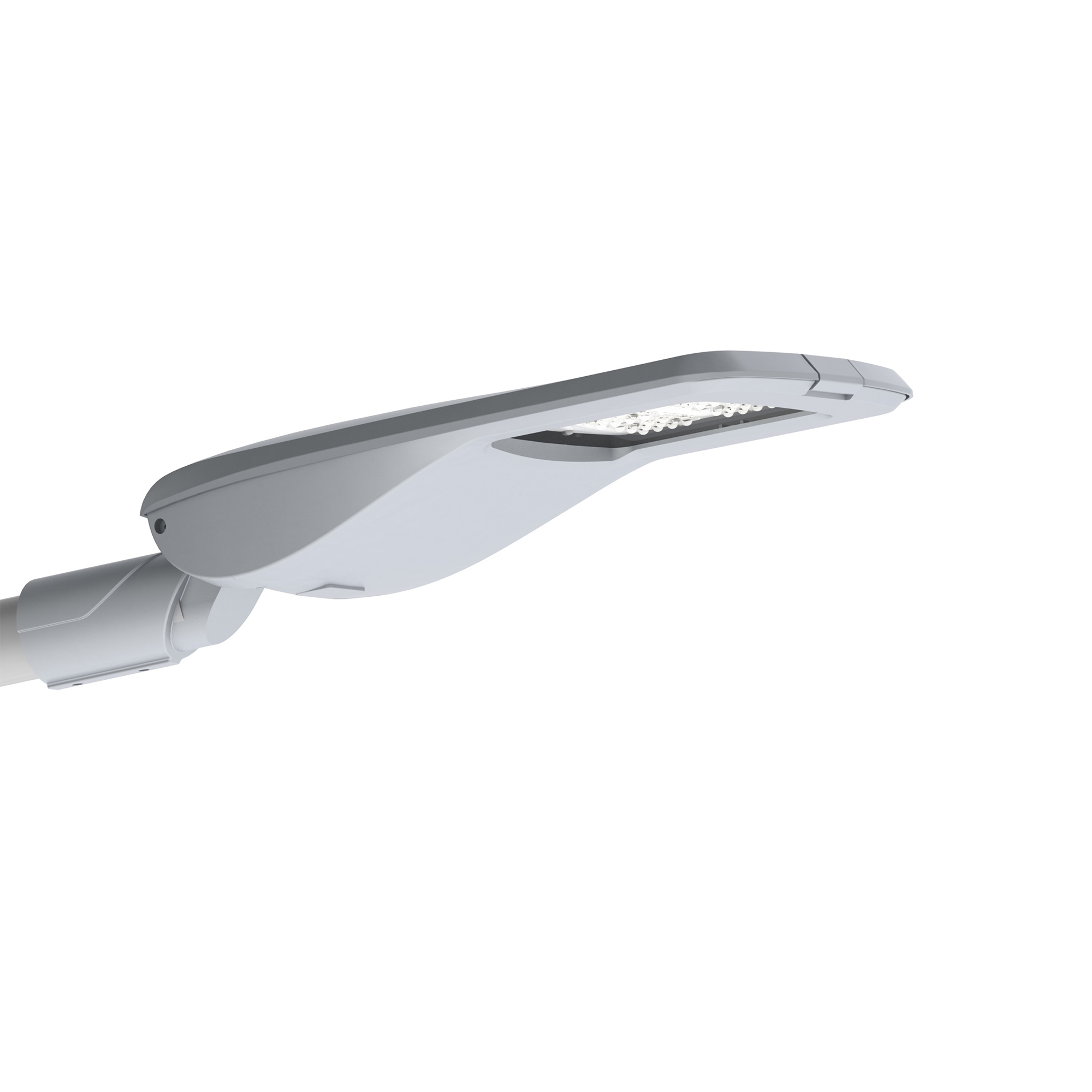

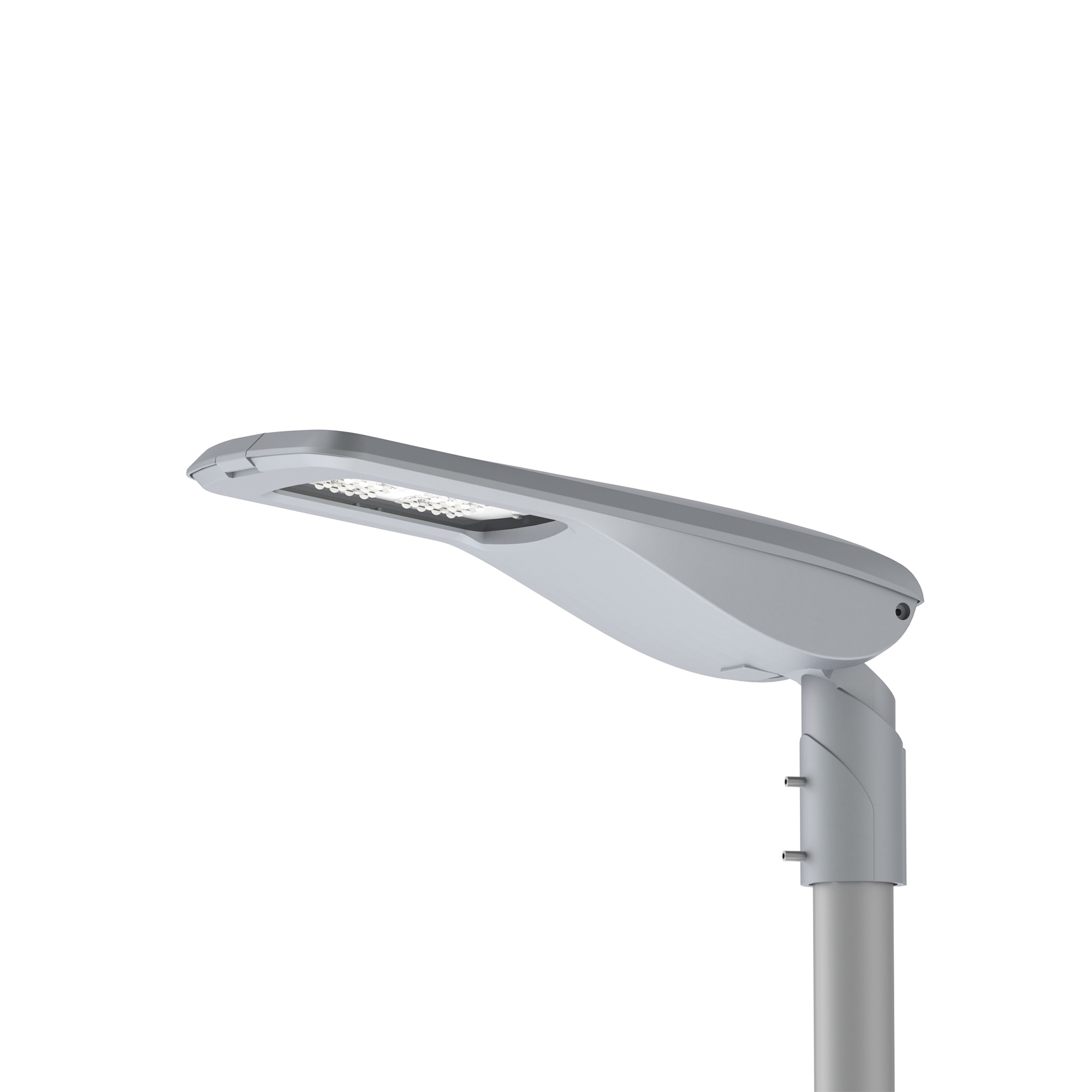

M Series Road Lighting Fixture

M Series Road Lighting Fixtures;

Street lighting has a new look with smooth lines, smooth body structure. Toolless maintenance and energy-breaker switch made safe. With its adjustable angle, it is suitable for every pole. 60 to 150 W power range is ready for every project.



  • Smooth surface,
  • Tool-free maintenance advantage,
  • Easy to change Driver,
  • Shutdown protection
M Series Product Groups
Product Codu M-72S-75-AC-[XXXX-AS] M-144S-100-AC-[XXXX-AS] M-144S-150-AC-[XXXX-AS]
Optical Specifications
Luminous Flux 9.750 lm 12.500 lm 18.000 lm
Power 75 W 100 W 150 W
CCT 3000 K , 4000 K , 5000 K, 6500 K
CRI Ra>70
Optics Asymmetric
Elektrical Specifications
Input Voltage 200-240 VAC
Surge Protection 6 kV Line - 10 kV Line-Ground
Power Frequency 50/60 Hz
PFC >0.95
Environmental
IP Protection IP66
LED Life Span >50,000Hrs(Ta=30°C@L70)
Operating Temperature -30°C to +50°C
Operating Humidity 15-90%RH
Housing Aluminium Injection
Protection Class Class I
Dimensions
Net Weight 7 Kg 7,5 Kg 7,5 Kg
Box Dimensions 650x300x120 mm 650x300x120 mm 650x300x120 mm
Other Details
Warranty 5 Years
Dim Specially 0-10 V or Uncontrolled
Intelligent Control Dali , Step Dim, Timer,  Zegbee , Daylight Sensor
Body Colour Gri Silver
